BECKHOFF • RKD1352290

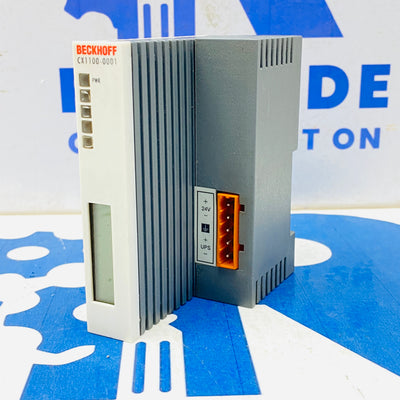

CX1100-0001
POWER SUPPLY UNIT
FOR CX1000/CX1010 AND CX1020
24 VDC (-15 %/+20 %)
8 KB NOVRAM
FSTN DISPLAY 2 LINES X 16 CHARACTERS OF TEXT
LIGHTED
NAVI SWITCH 4+1
PROTECTION CLASS IP 20
OPERATING/STORAGE TEMPERATURE 0 C ... +55 C/-25 C ... +85 C

BECKHOFF • RKD46253

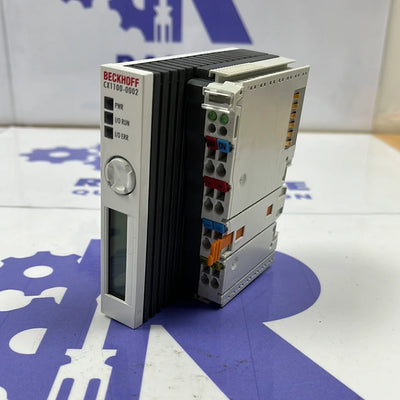

CX1100-0002
DISCONTINUED BY MANUFACTURER
POWER SUPPLY UNIT
1.75 AMP
24 VDC
3.5 W
NOVRAM: 8 KBYTES
I/O-DPRAM: 4 KBYTES
INTEGRATED K-BUS CONTROLLER
IP20

BECKHOFF • RKD1352320

CX1100-0002-1001
DISCONTINUED BY MANUFACTURER
POWER SUPPLY
K-BUS INTERFACE
24 V DC

BECKHOFF • RKD2563413

CX1100-0003
POWER SUPPLY UNIT FOR CX1000
CX1010 AND CX1020
CORE WITH K-BUS CAPABILITY AND IP-LINK CAPABILITY– 24 V DC (-15 %/+20 %)– INTEGRATED K-BUS CONTROLLER AND IP-LINK CONTROLLER– 8 KB NOVRAM– 4 KB I/O MEMORY FOR PROCESS DATA (SHARED WITH K-BUS PROCESS DAT

BECKHOFF • 17818 bx0013

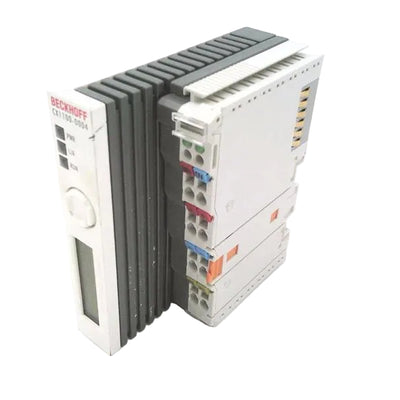

CX1100-0004
DISCONTINUED BY MANUFACTURER
POWER SUPPLY UNIT
FOR CX1010 AND CX1020
CORE WITH E-BUS CAPABILITY
24 VDC
E-BUS CONNECTION (ADAPTER TERMINAL)
E-BUS POWER SUPPLY UP TO 2 A
8 KB NOVRAM
REPLACED BY CX2100-0004

BECKHOFF • RKD1352349

CX1100-0004-1021
DISCONTINUED BY MANUFACTURER
POWER SUPPLY MODULE
2 AMP
24 VDC
3.5 W
8 KBYTES
W/ E BUS CONECTOR
SPRING LOADED
FSTN DISPLAY 2 LINES
16 CHARACTERS
ILLUMINATED
-25 TO +85 DEGREES C
IP20

BECKHOFF • RKD1396664

CX1100-0012
POWER SUPPLY UNIT FOR CX1030 CORE WITH K-BUS CAPABILITY
24 V DC (-15 %/+20 %)
INTEGRATED K-BUS CONTROLLER
K-BUS POWER SUPPLY UP TO MAX. 1.75 A
8 KB NOVRAM
2 KB DPRAM I/O MEMORY FOR K-BUS PROCESS DATA
FSTN DISPLAY 2 LINES X 16 CHARACTERS OF TEXT

BECKHOFF • RKD46276

CX1100-0014
POWER SUPPLY UNIT
FOR CX1030
CORE WITH E-BUS CAPABILITY
24 VDC SUPPLY
E-BUS CONNECTION (ADAPTER TERMINAL)
E-BUS POWER SUPPLY UP TO MAX. 1.75 AMP
8 KB NOVRAM
FSTN DISPLAY: 2 LINES X 16 CHARACTERS OF TEXT
LIGHTED
IP20

BECKHOFF • RKD2363322

CX1100-014
DISCONTINUED BY MANUFACTURER
POWER SUPPLY UNITS
I/O INTERFACES
FOR CX1030

BECKHOFF • RKD2563445

CX1100-0900
UNINTERRUPTIBLE POWER SUPPLY
OUTPUT MAX 550 MA 24 VDC
CAPACITIVE STORAGE TECHNOLOGY
SYSTEM BUS 16 BIT ISA
FOR CX CPU

BECKHOFF • RKD2363352

CX1100-0910
UPS MODULE
SUITABLE FOR CX1000 AND CX1010
24 VDC
1.1 AMP
2 WATT
20 AS CAPACITY
16 BIT ISA (PC/104 STANDARD)
0 TO +55 DEGREE C
IP20

BECKHOFF • GREU0221

CX1100-0920
DISCONTINUED BY MANUFACTURER
UPS MODULE
FOR UNINTERRUPTIBLE POWER SUPPLY OF THE CX CONTROLLER
SUITABLE FOR CX1000/CX1010/CX1020 (NOT CX1030)
ELECTRIC CHARGE: 40 A
OUTPUT CURRENT MAX. 1100 MA
24 VDC

BECKHOFF • RKD1352379

CX1100-0930
UPS MODULE
FOR CX CONTROLLER
SUITABLE FOR CX1000 / CX1010 / CX1020 / CX1030
ELECTRIC CHARGE: 40 AS
2000 MA MAX
24 V DC
2 W MAX POWER LOSS
WITH DIAGNOSTICS LEDS

BECKHOFF • RKD2563473

CX1100-0930-1001
DISCONTINUED BY MANUFACTURER
POWER SUPPLY
UPS MODULE
24 VDC
4 AMP
2 W
16 BIT ISA
IP 20

BECKHOFF • RKD1352411

CX1200-0510
EXPANSION MODULE FOR ADDITIONAL MASS STORAGE
COMPACT FLASH INTERFACE– COMPACT FLASH SLOT FOR TYPE I + II CARDS– LED STATUS INDICATOR FOR PWR (POWER)
LOCK (CARD INSERTED) AND CF (ACCESS)– PROTECTION CLASS: IP 20– OPERATING/STORAGE TEMPERATURE: 0 °
C … +55

BECKHOFF • RKD621901

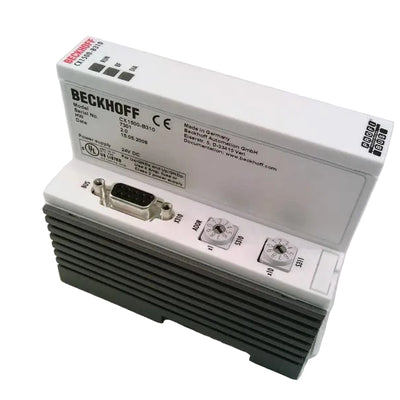

CX1500-B310
PROFIBUS SLAVE INTERFACE MODULE ISA ADDRESS: E4000
NUMBER OF FIELDBUS CHANNELS: 1
CONNECTOR TYPE: 9-PIN D-SUB
FEMALE
PROFIBUS DP
DP-V1
DP-V2 (MC)
COMMUNICATION SPEED: 9.6 KBAUD...12 MBAUD
MAX. PROCESS IMAGE: 244 BYTES IN/244 BYTES OUT

BECKHOFF • RKD46304

CX1500-B520
INDUSTRIAL PC
DEVICENET SLAVE FIELDBUS CONNECTION
125-500 KBAUD DATA TRANSFER RATES
255 BYTE INPUT/OUTPUT
1.8 W
OPEN STYLE CONNECTOR
5-PIN
0 TO +55 DEGREE C
IP20

BECKHOFF • RKD1396723

CX1500-B520-0001
DEVICENET SLAVE INTERFACE MODULE
OPEN STYLE CONNECTOR
5 PIN
IP20
24 VDC
MAX. 63 SLAVES

BECKHOFF • RKD1352441

CX1500-M200
LIGHTBUS MASTER INTERFACE MODULE
32 BIT OF PROCESS DATA
2 W
2.5 MBAUD DATA TRANSFER RATES
0 TO +55 DEGREES C
IP20

BECKHOFF • RKD46329

CX1500-M310
PROFIBUS MASTER INTERFACE MODULEISA ADDRESS: D4000– NUMBER OF FIELDBUS CHANNELS: 1– CONNECTOR TYPE: 9-PIN D-SUB
FEMALE – SUPPORTS PROFIBUS DP (STANDARD)
PROFIBUS DP-V1 (CL. 1+2: ACYCLIC SERVICES
ALARMS)
DP-V2 (MC)– TRANSMISSION RATE 9.6 KBAUD...12 MBA

BECKHOFF • RKD621925

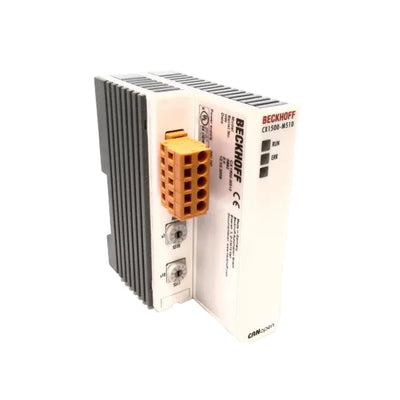

CX1500-M510
INTERFACE MODULE
1-CHANNEL FIELDBUS
OPEN STYLE CONNECTOR
5-PIN
10/20/50/100/125/250/500/800/1000 KBAUD TRANSMISSION RATE
INTERFACE TO THE CX CORE CPU THROUGH 16 BIT ISA INTERFACE WITH 2 KB DP

BECKHOFF • RKD621948

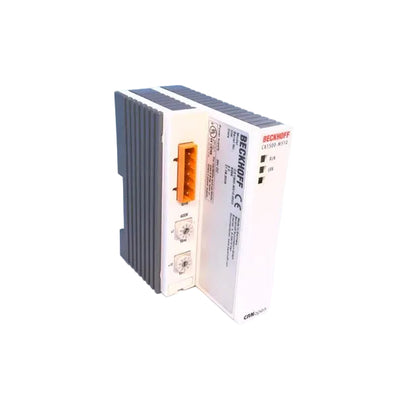

CX1500-M510-0003
INTERFACE MODULE
BUS INTERFACE
CANOPEN
FOR CX SYSTEMS
10-1000 KBA TRANSFER RATE
OPEN STYLE CONNECTOR (5-PIN)
127 SLAVE MAX
24 VDC SUPPLY
D8000 ISA-ADRESS
DIN RAIL MOUNTING

BECKHOFF • RKD487545

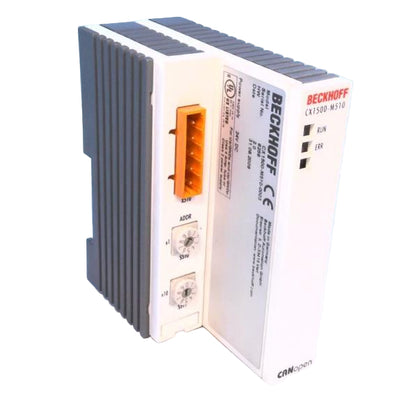

CX1500-M510-1002
CANOPEN MASTER INTERFACE MODULEISA ADDRESS: DC000- NUMBER OF FIELDBUS CHANNELS: 1- CAN BUS INTERFACE 9-PIN D-SUB CONNECTOR ACCORDING TO CANOPEN SPECIFICATION
INTERFACE GALVANICALLY ISOLATED- TRANSMISSION RATE 10
20
50
100
125
250
500
800
1000 KBA

BECKHOFF • RKD1396746

CX1500-M520
DEVICENET MASTER INTERFACE MODULEISA ADDRESS: D8000– NUMBER OF FIELDBUS CHANNELS: 1– OPEN STYLE CONNECTOR
5-PIN – TRANSMISSION RATE 125
250
500 KBAUD– INTERFACE TO THE CX CORE CPU THROUGH 16 BIT ISA INTERFACE WITH 2 KB DPRAM– BUS NODES PER CHANNEL: MAX
