Industrial Automation Products

INVERTEK • RKD2226726

ODP-2-74250-3HF4N-MN
VARIABLE FREQUENCY DRIVE
OPTIDRIVE™ P2
PERFORMANCE
FRAME SIZE 7
ODP-2
OUTPUT CURRENT 302 AMPS
POWER RATING 160 KW / 250HP
INPUT VOLTAGE 380-480V 3F
OUTPUT VOLTAGE 380-480V 3F
IP55/NEMA12
TFT KEYPAD
EMC FILTER C3
DIMENSION 50.4X13X14.1 INCHES

INVERTEK •

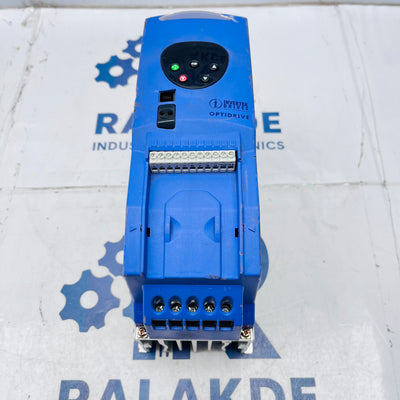

ODP-24150-IN
AC VARIABLE SPEED DRIVE
OPTIDRIVE P2
HIGH PERFORMANCE
PANEL MOUNT
WITH STO
400 V
3 PHASE INPUT
3 PHASE OUTPUT 1.5 KW
IP20

INVERTEK • RKD2004910

ODP-25010-USA-I55S
DISCONTINUED BY MANUFACTURER
AC DRIVE
ODP SERIES
1 HP
500-600 VAC
1.7 AMP
3 PHASE
500HZ
OPEN LOOP SENSORLESS VECTOR
PANEL MOUNTING
IP55
NEMA 12

INVERTEK • RKD2170393

ODP-44220-IN
VARIABLE FREQUENCY DRIVE
WITH EMC FILTER AND OLED TEXT DISPLAY
380-480 V
3-PHASE
22 KW
IP55 ENCLOSURE
46 A

INVERTEK • RKD1763407

ODV-2-22150-3KF12-SN
AC VARIABLE SPEED DRIVE
OPTIDRIVE
1.5KW
2HP
7AMP
200-240V
3 PHASE
2 FRAME

INVERTEK • RKD2004913

ODV-2-32040-3KF12-SN
AC VARIABLE SPEED DRIVE
OPTIDRIVE
4KW
5HP
18AMP
200-240V
3 PHASE
3 FRAME

INVERTEK • RKD2226732

ODV-2-32055-3KF12-SN
DISCONTINUED BY MANUFACTURER
AC VARIABLE SPEED DRIVE
OPTIDRIVE
5.5KW
7.5HP
24AMP
200-240V
3 PHASE
3 FRAME

INVERTEK • RKD1959268

ODV-2-34055-3KF1X-TN
DISCONTINUED BY MANUFACTURER
FAN/PUMP AC INVERTER DRIVE SPEED CONTROLLER
OPTIDRIVE HVAC
400 V
5.5 KW
IP66

INVERTEK • RKD2004916

ODV-2-34075-3KF1X-TN
DRIVE
HVAC
7.5KW
3X400V
IP66

INVERTEK • RKD1959271

ODV-2-44110-3KF1N
DISCONTINUED BY MANUFACTURER
ODV2441103KF1N HVAC IP55 11KW 400V FAN/PUMP AC INVERTER DRIVE SPEED CONTROLLER

INVERTEK • RKD1959274

ODV-3-220070-3F1X-TN
DRIVE
2 FRAME SIZE
7 AMP
1.5 POWER RATING KW
2 HP
200~240 VOLT 3F INPUT VOLTAGE
200~240 VOLT 3F OUTPUT VOLTAGE
IP66/NEMA4X INDOOR
OLED KEYPAD
EMC FILTER
OPTIDRIVE™ ECO LOW HARMONIC
10.1X7.4X9.4 IN.

INVERTEK • RKD2104080

ODV-3-240041-3F1D-TN
DRIVE
2 FRAME SIZE
4.1 AMP
1.5 POWER RATING KW
2 HP
380~480 VOLT 3F INPUT VOLTAGE
380~480 VOLT 3F OUTPUT VOLTAGE
IP66/NEMA4X INDOOR
OLED KEYPAD+DISCONNECT
EMC FILTER
OPTIDRIVE™ ECO LOW HARMONIC
10.1X7.4X10.2 IN.

INVERTEK • RKD2106117

ODV-3-260031-3012-SN
VARIABLE FREQUENCY DRIVE
2 FRAME SIZE
3.1 AMP
1.5 POWER RATING KW
2 HP
500~600 VOLT 3F INPUT VOLTAGE
500~600 VOLT 3F OUTPUT VOLTAGE
IP20
LED KEYPAD
NO EMC FILTER
OPTIDRIVE ECO
8.7X4.3X7.3 IN.

INVERTEK • RKD2170396

ODV-3-260065-301A-MN
VARIABLE FREQUENCY DRIVE
OPTIDRIVE ECO
FRAME SIZE 2
OUTPUT CURRENT 6.5 AMPS
POWER RATING 4 KW / 5HP
INPUT VOLTAGE 500-600V 3F
OUTPUT VOLTAGE 500-600V 3F
IP66/NEMA4X INDOOR/OUTDOOR
TFT KEYPAD
EMC FILTER NONE
DIMENSION 10.1X7.4X9.4 INCHES

INVERTEK • RKD1959277

ODV-3-260090-301X-TN
DRIVE
2 FRAME SIZE
9 AMP
5.5 KW / 7.5 HP
500~600 VOLT 3F INPUT VOLTAGE
500~600 VOLT 3F OUTPUT VOLTAGE
IP66/NEMA4X INDOOR
OLED KEYPAD
NO EMC FILTER
OPTIDRIVE ECO
10.1X7.4X9.4 IN.

INVERTEK • RKD1959286

ODV-3-320180-3F1X-TN
DRIVE
3 FRAME SIZE
18 AMP
4 POWER RATING KW
5 HP
200~240 VOLT 3F INPUT VOLTAGE
200~240 VOLT 3F OUTPUT VOLTAGE
IP66/NEMA4X INDOOR
OLED KEYPAD
EMC FILTER
OPTIDRIVE™ ECO LOW HARMONIC
12.2X8.3X10.7 IN.

INVERTEK • RKD1763410

ODV-3-340180-3F12-MN
VARIABLE FREQUENCY DRIVE
OPTIDRIVE ECO LOW HARMONIC
FRAME SIZE 3
ODV-3
18 AMPS OUTPUT CURRENT
7.5 KW / 10HP
380-480V 3-PHASE INPUT AND OUTPUT
IP20
TFT KEYPAD
EMC FILTER C1/2/3

INVERTEK • RKD1763413

ODV-3-340240-3F12-MN
VARIABLE FREQUENCY DRIVE
OPTIDRIVE ECO LOW HARMONIC
FRAME SIZE 3
ODV-3
24 AMPS OUTPUT CURRENT
11 KW / 15HP
380-480V 3-PHASE INPUT AND OUTPUT
IP20
TFT KEYPAD
EMC FILTER C1/2/3

INVERTEK • RKD2004922

ODV-3-360120-3012-SN
DRIVE
3 FRAME SIZE
12 AMP
7.5 POWER RATING KW
10 HP
500~600 VOLT 3F INPUT VOLTAGE
500~600 VOLT 3F OUTPUT VOLTAGE
IP20
LED KEYPAD
NO EMC FILTER
OPTIDRIVE™ ECO
10.3X5.2X8.1 IN.

INVERTEK • RKD1959289

ODV-3-360120-301E-MN
VARIABLE FREQUENCY DRIVE
OPTIDRIVE ECO
FRAME SIZE 3
ODV-3
12A
7.5 KW
10HP
500-600V
3-PHASE INPUT / OUTPUT
IP66/NEMA4X
INDOOR/OUTDOOR
TFT KEYPAD

INVERTEK • RKD2004925

ODV-3-420460-3F1N-MN
VARIABLE FREQUENCY DRIVE
OPTIDRIVE ECO LOW HARMONIC
FRAME SIZE 4
ODV-3
OUTPUT CURRENT 46 AMPS
POWER RATING 11 KW / 15HP
INPUT VOLTAGE 200-240V 3F
OUTPUT VOLTAGE 200-240V 3F
IP55/NEMA12
TFT KEYPAD
EMC FILTER C1/2/3
DIMENSION 17.7X6.7X9.9 INCHE

INVERTEK • RKD2226735

ODV-3-440300-3F1N-TN
DRIVE
4 FRAME SIZE
30 AMP
15 POWER RATING KW
20 HP
380~480 VOLT 3F INPUT VOLTAGE
380~480 VOLT 3F OUTPUT VOLTAGE
IP55/NEMA12
OLED KEYPAD
EMC FILTER
OPTIDRIVE™ ECO LOW HARMONIC
17.7X6.7X9.9 IN.

INVERTEK • RKD2170402

ODV-3-440390-3F1N-TN
DISCONTINUED BY MANUFACTURER
DRIVE
4 FRAME SIZE
39 AMP
18.5 KW
25 HP
380~480 VOLT 3F
IP55/NEMA12
OLED KEYPAD
EMC FILTER
OPTIDRIVE ECO LOW HARMONIC
17.7X6.7X9.9 IN.
REPLACED WITH ODV-3-440390-3F1N-MN

INVERTEK • RKD2170405

ODV-3-440460-3F12-MN
VARIABLE FREQUENCY DRIVE
OPTIDRIVE ECO LOW HARMONIC
FRAME SIZE 4
ODV-3
46 AMPS OUTPUT CURRENT
22 KW / 30HP
380-480V 3-PHASE INPUT AND OUTPUT
IP20
TFT KEYPAD
EMC FILTER C1/2/3
