Industrial Automation Products

MULTICOMP • RKD418455

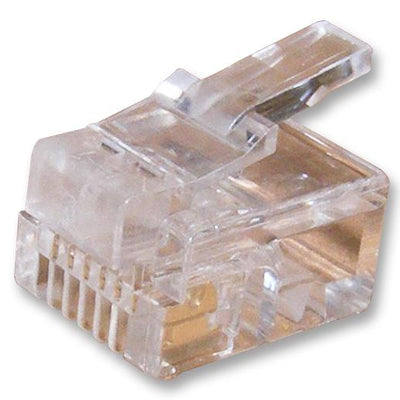

7001-6P6C
RJ12 PLUG
6 POSITION
6CONT
MODULAR CONNECTOR TYPE:RJ12 PLUG
PORT CONFIGURATION:1 X 1 PORT
NO. OF POSITIONS / LOADED CONTACTS (PER PORT):6P6C
LAN CATEGORY:-
IP RATING:-
CONNECTOR MOUNTING:CABLE MOUNT
SHIELDING:UNSHIELDED ROHS COMPLIANT: YES

MULTICOMP • RKD718952

703-0088
LED
YELLOW
3MM
50MCD
590NM
LED COLOR:YELLOW
LED MOUNTING:THROUGH HOLE
BULB SIZE:3MM
FORWARD CURRENT IF:20MA
FORWARD VOLTAGE:2.1V
WAVELENGTH TYP:590NM
LUMINOUS INTENSITY:50MCD
VIEWING ANGLE:35¦

LENS SHAPE:ROUND
MSL:- ROHS COMPLIANT: YES

MULTICOMP • RKD697479

703-0090
LED
RED
3MM
100MCD
643NM
LED COLOR:RED
LED MOUNTING:THROUGH HOLE
BULB SIZE:3MM
FORWARD CURRENT IF:20MA
FORWARD VOLTAGE:1.8V
WAVELENGTH TYP:643NM
LUMINOUS INTENSITY:100MCD
VIEWING ANGLE:35¦

LENS SHAPE:ROUND
MSL:- ROHS COMPLIANT: YES

MULTICOMP • RKD521563

703-0097
LED
GREEN
5MM
150MCD
572NM
LED COLOR:GREEN
LED MOUNTING:THROUGH HOLE
BULB SIZE:5MM
FORWARD CURRENT IF:20MA
FORWARD VOLTAGE:2.1V
WAVELENGTH TYP:572NM
LUMINOUS INTENSITY:150MCD
VIEWING ANGLE:15¦

LENS SHAPE:ROUND
MSL:- ROHS COMPLIANT: YES

MULTICOMP • RKD594868

722-N-A
TERMINAL CLOSE END CONNECTOR CRIMP NATURAL
PRODUCT RANGE:CCN-ZY SERIES
TERMINATION:CRIMP
WIRE SIZE AWG MIN:22AWG
WIRE SIZE AWG MAX:14AWG
CONDUCTOR AREA CSA:-
INSULATOR COLOUR:NATURAL
INSULATOR MATERIAL:NYLON (POLYAMIDE) ROHS COMPLIANT: YES

MULTICOMP • RKD521565

724-804
CONNECTOR UHF COAXIAL MALE 50OHM STRAIGHT

MULTICOMP • RKD479793

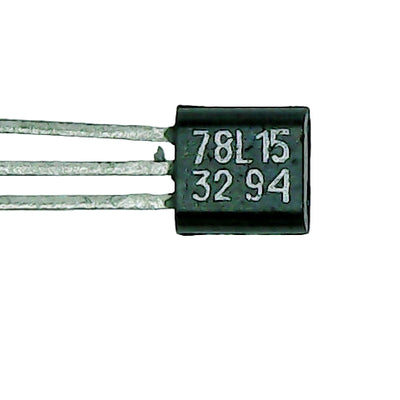

78L15
LINEAR VOLTAGE REGULATOR
15V
TO-92
FIXED OUTPUT VOLTAGE NOM.:15V
ADJUSTABLE OUTPUT VOLTAGE MIN:-
ADJUSTABLE OUTPUT VOLTAGE MAX:-
INPUT VOLTAGE MIN:-
INPUT VOLTAGE MAX:23V
PRODUCT RANGE:7815 VOLTAGE REGULATORS
MSL:- ROHS COMPLIANT: NO

MULTICOMP • RKD533922

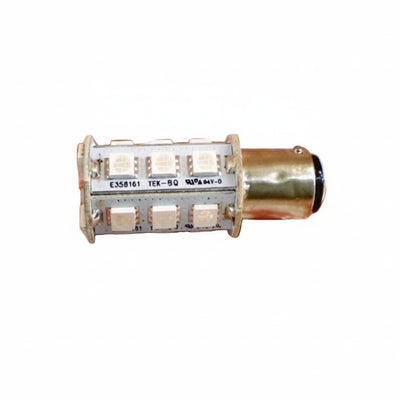

78T7241
LED BULB BA15D 3.2W GREEN

MULTICOMP • RKD533924

79K5043
DISCONTINUED BY MANUFACTURER
CONNECTOR
POT SERIES
D-SUB
SOLDER TERMINATION
PLUG
9 PIN - MALE

MULTICOMP • RKD697481

79L15
NEGATIVE VOLTAGE REGULATOR
-15V
TO-92
OUTPUT TYPE:FIXED
NO. OF OUTPUTS:1OUTPUTS
OUTPUT VOLTAGE - NOM:-15V
OUTPUT VOLTAGE MIN:-
OUTPUT VOLTAGE MAX:-
INPUT VOLTAGE MIN:-20V
INPUT VOLTAGE MAX:-
MAX OUTPUT CURRENT:40MA
MSL:- ROHS COMPLIANT: YES

MULTICOMP • RKD422613

7C7120V
(PRICE/PK OF 10) LAMP
INCANDESCENT
CAND
120V
7W
SUPPLY VOLTAGE:120V
POWER RATING:7W
LENGTH:58MM
AVERAGE BULB LIFE:3000H
BULB DIAMETER:22.225M

MULTICOMP • RKD422618

80K5382
DISCONTINUED BY MANUFACTURER
THUMB SCREW
1.9IN
PACK OF 2

MULTICOMP • RKD479796

80K5431
FEMALE SCREW LOCK SET FOR D-SUB CONNECTOR
JACK SCREW
D SUB
13MM

MULTICOMP • RKD533926

812053
SOLDER WIRE
99.3/0.7 SN/CU
250G
FLUX TYPE:NO CLEAN AND ROSIN FLUX
SOLDER ALLOY:99.3
0.7 SN
CU
EXTERNAL DIAMETER - METRIC:1.2MM
EXTERNAL DIAMETER - IMPERIAL:0.047
MELTING TEMPERATURE:227¦
C
WEIGHT - METRIC:250G
WEIGHT:250G ROHS COMPLIANT: YES

MULTICOMP • RKD521567

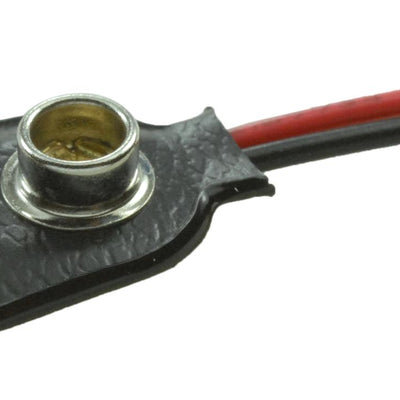

8459-0674
BATTERY STRAP
9V
WIRE LEAD
BATTERY SIZES ACCEPTED:PP3 (9V)
NO. OF BATTERIES:1
PRODUCT RANGE:-
ACCESSORY TYPE:BATTERY STRAP
BATTERY TERMINALS:WIRE LEADS
FOR USE WITH:9V BATTERIES ROHS COMPLIANT: YES

MULTICOMP • RKD521570

8588-0207A
CONNECTOR
MODULAR
JACK
6P6C
1PORT
CONNECTION BOX
1 X 1 (PORT)
ROHS COMPLIANT: YES

MULTICOMP • RKD533928

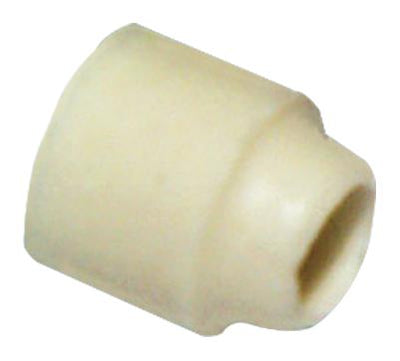

8919275
BEAD SPACER
MATERIAL: CERAMIC
COLOR: NATURAL / WHITE
SHAPE: ROUND
PRICE PER 50PC

MULTICOMP • RKD697483

8919275-EACH
BEAD SPACER
MATERIAL: CERAMIC
COLOR: NATURAL / WHITE
SHAPE: ROUND
PRICE PER EACH

MULTICOMP • RKD479798

8FSM25P-30N1-FEC
D SUB CONNECTOR
STANDARD
PLUG
25 POSITION
NO. OF CONTACTS:25CONTACTS
GENDER:PLUG
CONTACT TERMINATION TYPE:IDC / IDT
D SUB SHELL SIZE:DB
PRODUCT RANGE:METAL D SERIES
CONNECTOR BODY MATERIAL:METAL BODY
CONTACT MATERIAL:BRASS ROHS COMPLIANT: YES

MULTICOMP • RKD422620

8FTM25S-30N4-FEC
STANDARD D SUB CONNECTOR
METAL D SERIES
DB
RECEPTACLE
25
METAL BODY
IDC / IDT ROHS COMPLIANT: YES

MULTICOMP • RKD697485

8LCM009S-304B-XX
D SUB CONNECTOR
STANDARD
SOCKET
9 POSITION
NO. OF CONTACTS:9CONTACTS
GENDER:RECEPTACLE
CONTACT TERMINATION TYPE:SOLDER
D SUB SHELL SIZE:DE
PRODUCT RANGE:8LC SERIES
CONNECTOR BODY MATERIAL:STEEL BODY
CONTACT MATERIAL:BRASS ROHS COMPLIANT: YES

MULTICOMP • RKD697491

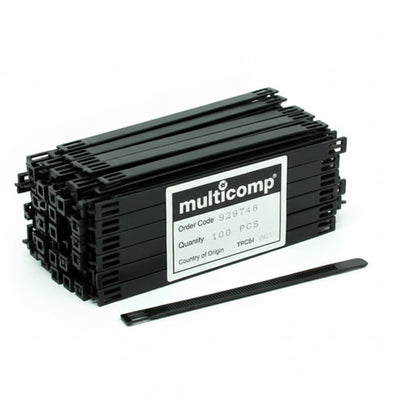

929-748
CABLE MARKER CARRIER 100MM 100/PACK

MULTICOMP • RKD533930

929-748-EACH
CABLE MARKER CARRIER 100MM

MULTICOMP • RKD479800

A-2.109-BL
SOCKET
4MM
PANEL
BLUE
CONNECTOR TYPE:TEST SOCKET
GENDER:RECEPTACLE
CURRENT RATING:32A
CONTACT PLATING:NICKEL
CONTACT MATERIAL:BRASS
CONNECTOR
