Industrial Automation Products

LEUZE • RKD576284

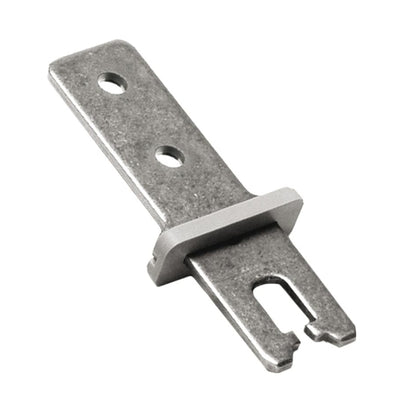

AC-AHL-S
63000740
ACTUATOR
DIMENSIONS: 32 MM X 13 MM X 79.1 MM
TYPE OF FASTENING: THROUGH-HOLE MOUNTING
DESIGN: STRAIGHT
AREA OF APPLICATION: ULTRA HEAVY DUTY
MOUNTING BORE HOLES: 90 TO KEY DIRECTION
MATERIAL: STAINLESS STEEL
63000740

LEUZE • RKD450207

AC-ALM
(427300)
ALIGNMENT AID
HOUSING MATERIAL: PLASTIC

LEUZE • RKD671382

AC-ALM-M
(520101)
ALIGNMENT AID
HOUSING MATERIAL: PLASTIC

LEUZE • RKD671385

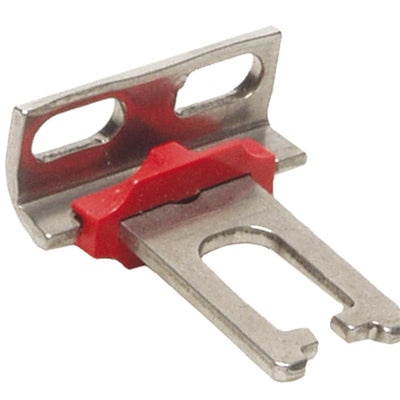

AC-AN-A
(63000701)
ACTUATOR
DIMENSIONS: 28 MM X 11.8 MM X 30.7 MM
TYPE OF FASTENING: THROUGH-HOLE MOUNTING
DESIGN: ANGLED
AREA OF APPLICATION: NORMAL DUTY
MOUNTING BORE HOLES: IN KEY DIRECTION
MATERIAL: STAINLESS STEEL

LEUZE • RKD397462

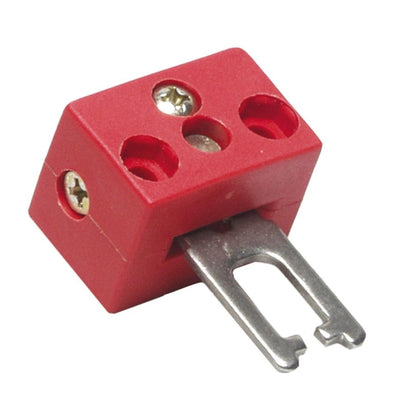

AC-AN-F2J2
(63000703)
ACTUATOR
DIMENSIONS: 30 MM X 22 MM X 44 MM
TYPE OF FASTENING: THROUGH-HOLE MOUNTING
DESIGN: STRAIGHT
AREA OF APPLICATION: NORMAL DUTY
MOUNTING BORE HOLES: 90°
TO KEY DIRECTION
MATERIAL: PLASTIC
STAINLESS STEEL
FUNCTIONS: FLEXIBLE
2 DI

LEUZE • RKD447587

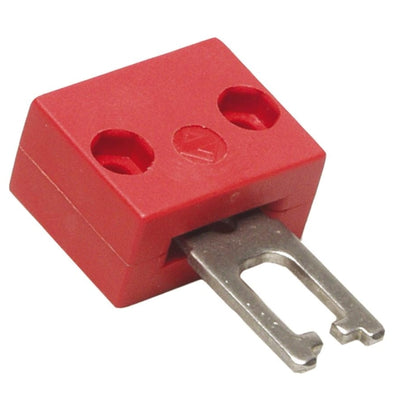

AC-AN-F4
(63000702)
ACTUATOR
DIMENSIONS: 30 MM X 16 MM X 48 MM
TYPE OF FASTENING: THROUGH-HOLE MOUNTING
DESIGN: STRAIGHT
AREA OF APPLICATION: NORMAL DUTY
MOUNTING BORE HOLES: 90°
TO KEY DIRECTION
MATERIAL: PLASTIC
STAINLESS STEEL
FUNCTIONS: FLEXIBLE
4 DI

LEUZE • RKD646509

AC-AN-S
63000700
ACTUATOR
DIMENSIONS: 28 MM X 9 MM X 39.8 MM
TYPE OF FASTENING: THROUGH-HOLE MOUNTING
DESIGN: STRAIGHT
AREA OF APPLICATION: NORMAL DUTY
MOUNTING BORE HOLES: 90 TO KEY DIRECTION
MATERIAL: STAINLESS STEEL
63000700

LEUZE • RKD576287

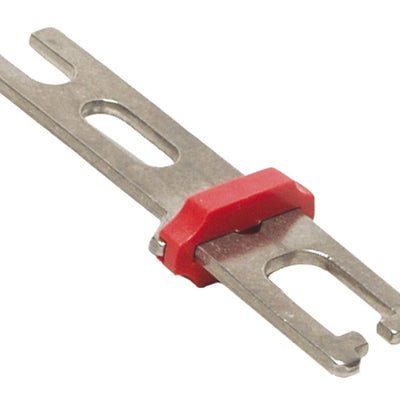

AC-AN-SL
(63000704)
ACTUATOR
DIMENSIONS: 20.6 MM X 9 MM X 64 MM
TYPE OF FASTENING: THROUGH-HOLE MOUNTING
DESIGN: STRAIGHT
AREA OF APPLICATION: NORMAL DUTY
MOUNTING BORE HOLES: 90°
TO KEY DIRECTION
MATERIAL: STAINLESS STEEL

LEUZE • RKD447590

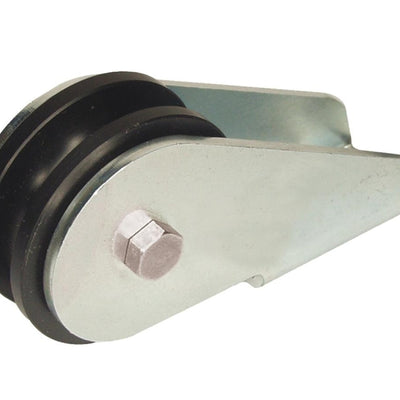

AC-AP-ERS
(63000793)
CORNER PULLEY
SUITABLE FOR: ERS200 SAFETY COMMAND DEVICES
DIMENSIONS: 26.2 MM X 37.5 MM X 67.5 MM
MOUNTING: ANGLED
MATERIAL: PLASTIC
STAINLESS STEEL
DIAMETER: 35 MM

LEUZE • RKD326396

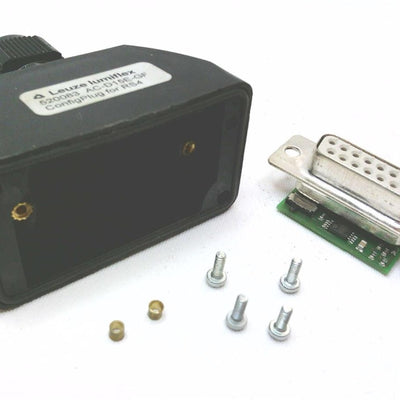

AC-D15E-GF
(520083)
CONNECTION CABLE
CONNECTION: SUB-D
AXIAL
FEMALE
15 -PIN

LEUZE • RKD326398

AC-H-S400
(63000770)
ADDITIONAL HINGE
SUITABLE FOR: S400 SAFETY HINGE SWITCH
DIMENSIONS: 49 MM X 22.5 MM X 100.6 MM
HOUSING MATERIAL: METAL
ZAMAK
HOUSING COLOR: SILVER
TYPE OF FASTENING: MOUNTING THREAD

LEUZE • RKD330760

AC-H-S410
(63000773)
ADDITIONAL HINGE
SUITABLE FOR: S410 SAFETY HINGE SWITCH
DIMENSIONS: 79 MM X 22.5 MM X 100.6 MM
HOUSING MATERIAL: METAL
ZAMAK
HOUSING COLOR: SILVER
TYPE OF FASTENING: MOUNTING THREAD

LEUZE • RKD646512

AC-KT10-ERS
(63000790)
ACCESSORIES SET
CONSISTING OF: 10 M STEEL ROPE
ADJUSTABLE CLAMPING BOLT (AC-SBO-ERS)
ROPE END PIECE (AC-ENCLF-ERS)
SUITABLE FOR: ERS200 SAFETY COMMAND DEVICES

LEUZE • RKD326400

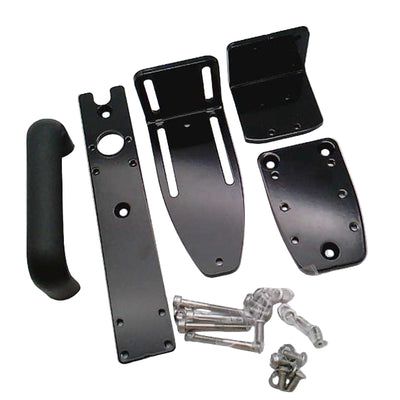

AC-L300-SH-LCK0-B3-P
(50133288)
SAFETY DOOR HANDLE
SUITABLE FOR: L300 SAFETY LOCKING DEVICES
LOCK OUT MECHANISM: NO
DOOR HANDLE MATERIAL: PLASTIC
MOUNTING ON THE DOOR POST: SHORT PLATE
MOUNTING ON THE DOOR: 3 ADJUSTABLE PLATES

LEUZE • RKD576290

AC-MK1
(520071)
ADAPTER
SUITABLE FOR: MLD 500
MLD 300 MULTIPLE LIGHT BEAM SAFETY DEVICES
DIMENSIONS: 23.3 MM X 17.5 MM X 24 MM
NET WEIGHT: 20 G
HOUSING COLOR: BLACK
FUNCTIONS: ACTIVATION OF THE LASER ALIGNMENT AID

LEUZE • RKD330762

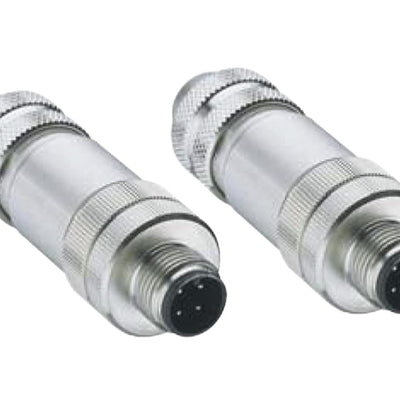

AC-MLC-END
(426128)
CONNECTOR SET
SUITABLE FOR: MLC 500 HOST TRANSMITTER SAFETY LIGHT CURTAINS
MLC 520 HOST RECEIVER SAFETY LIGHT CURTAINS
DEGREE OF PROTECTION: IP 67

LEUZE • RKD447592

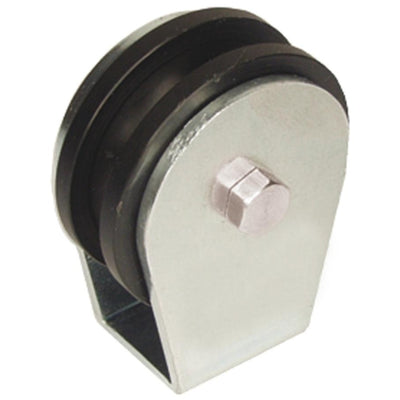

AC-P-ERS
(63000800)
DEFLECTION ROLLER
SUITABLE FOR: ERS200 SAFETY COMMAND DEVICES
DIMENSIONS: 26.2 MM X 26.2 MM X 45.5 MM
MOUNTING: STRAIGHT
MATERIAL: STAINLESS STEEL
PLASTIC
DIAMETER: 35 MM

LEUZE • RKD576293

AC-PB60-L200
(63000753)
EXTENSION
17X60MM
L200 SAFETY LOCKING DEVICES

LEUZE • RKD326403

AC-PLP-8
(63000844)
BUILT-IN PLUG
NUMBER OF CONDUCTORS: 8 PIECE(S)
CONNECTION: CONNECTOR
M12
PLASTIC
AXIAL
8 -PIN

LEUZE • RKD646514

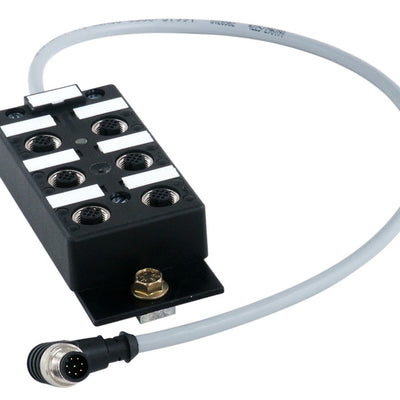

AC-SCM1-BT
DISCONTINUED BY MANUFACTURER
SENSOR CONNECTION MODULE
1 AMP
24 VDC
CABLE LENGTH: 500 MM
SUITABLE FOR: COMPACTPLUS-ML MULTIPLE LIGHT BEAM SAFETY DEVICES &
COMPACTPLUS-M SAFETY LIGHT CURTAINS
(520068)

LEUZE • RKD450210

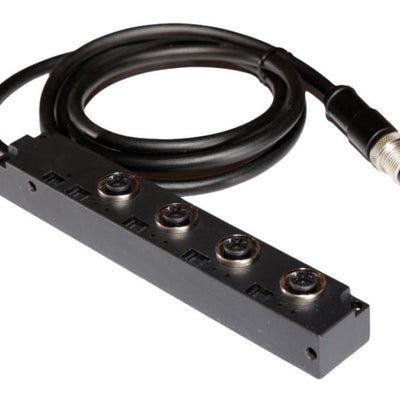

AC-SCM5
DISCONTINUED BY MANUFACTURER
SENSOR CONNECTION MODULE
FOR MLD 500/300 SAFETY DEVICES
1 AMP
24 VDC
1 X MALE 5-PIN CONNECTION
4 X FEMALE 5-PIN CONNECTION
(520062)

LEUZE • RKD330765

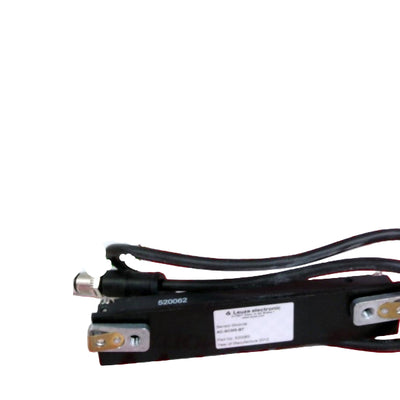

AC-SCM5-BT
(520063) SENSOR MODULE

LEUZE • RKD450212

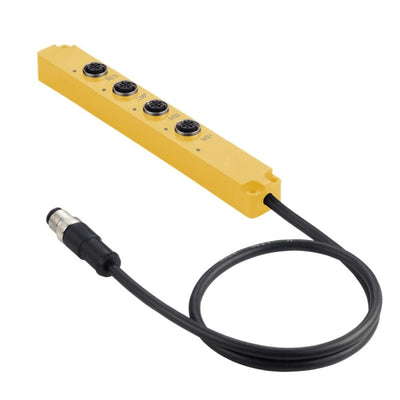

AC-SCM5U
SENSOR CONNECTION MODULE
SUITABLE FOR: MLD 330
MLD 530 MULTIPLE LIGHT BEAM SAFETY DEVICES
SUPPLY VOLTAGE: 24 V
DC
-20-20 %
NUMBER OF CONNECTIONS: 5 PIECE(S)
CONNECTION: CABLE WITH CONNECTOR
M12
500MM
TYPE OF FASTENING: THROUGH-HOLE
520150

LEUZE • RKD330768

AC-SCM5U-BT
(520151)
SENSOR CONNECTION MODULE
SUITABLE FOR: MLD 330
MLD 530 MULTIPLE LIGHT BEAM SAFETY DEVICES
SUPPLY VOLTAGE: 24 V
DC
-20 ... 20 %
NUMBER OF CONNECTIONS: 5 PIECE
CONNECTION: CABLE WITH CONNECTOR
M12
500 MM
TYPE OF FASTENING: MOUNTING PLATE
