Industrial Automation Products

FESTO • RKD1536348

HEE-D-MAXI-24
SHUT OFF VALVE
HEE SERIES
PISTON GATE
ELECTRICAL ACTUATION
MECHANICAL SPRING RESET
3/2
CLOSED
MONOSTABLE
2.5-16 BAR OPERATING PRESSURE
24 VDC
3.0 W COIL
G3/8 PNEUMATIC CONNECTION
172962

FESTO • RKD1723444

HEE-D-MIDI-110
SHUT OFF VALVE
HEE SERIES
PISTON GATE VALVE
ELECTRICAL ACTUATION
MECHANICAL SPRING RESET
PILOT-CONTROLLED
3/2
CLOSED
MONOSTABLE
2.5-16 BAR OPERATING PRESSURE
G1/4 PNEUMATIC CONNECTION
DIE-CAST ALUMINUM HOUSING
(172960)

FESTO • RKD1723447

HEE-D-MIDI-230
ON/OFF PNEUMATIC VALVE
230 VAC
50/60 HZ
2.5-16 BAR
36-230 PSI
0.25-1.6 MPA
3/2 CLOSED
MONOSTABLE
MECHANICAL SPRING
ALUMINUM DIE CAST

FESTO • RKD1759090

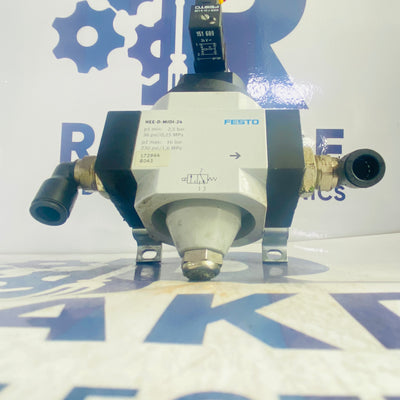

HEE-D-MIDI-24
PNEUMATIC VALVE
MANUAL CONTROL
HEE SERIES
16 BAR
3/2 CLOSED MONOSTABLE
G1/4 THREAD SIZE
2 POSITION
3 PORTS
-10 TO +60 DEGREE C
172959
172944

FESTO • RKD1742154

HEE-D-MIDI-24-M12-VW-SA
DISCONTINUED BY MANUFACTURER
START VALVE
36-230 PSI
2.5-16 BAR
0.25-1.6 MPA

FESTO • RKD1700856

HEE-D-MINI-110
PISTON GATE VALVE
ON/OFF SOFT START
PILOT-CONTROLLED
MECHANICAL SPRING
40MM
G1/8 FEMALE
110V AC
DIE-CAST ALUMINUM

FESTO • RKD1622792

HEE-D-MINI-230
VALVE
ON/OFF
COIL 230 VAC
50/60 HZ
INITIAL POWER 5.0 VA
HOLDING POWER 3.7 VA
WITHOUT THREADED CONNECTION PLATES
WITH THREADED FRB THREADED PINS
ELECTRIC ACTUATION
SOFT SEAL
AIR EXHAUST NOT THROTTLED
DETENTING MANUAL OVERRIDE

FESTO • RKD1799547

HEE-D-MINI-24
ON-OFF VALVE
D-SERIES
3/2-WAY
ELECTRICAL
24 VDC
40 MM GRID DIMENSION
2.5-16 BAR OPERATING PRESSURE
NORMALLY CLOSED
W/O CONNECTING PLATES
(172956)

FESTO • RKD1742161

HEL-1/2-D-MIDI
SHUT OFF VALVE
HEL SERIES
WITH FLOW CONTROL OPTION
PNEUMATIC ACTUATION
MECHANICAL SPRING RESET
DIRECT CONTROL
2/2
CLOSED
MONOSTABLE FUNCTION
3-16 BAR OPERATING PRESSURE
3600 L/MIN STANDARD NOMINAL FLOW RATE
G1/2 PNEUMATIC CONNECTIONS
165080

FESTO • RKD1759093

HEL-1/2-D-MIDI-NPT
SHUT OFF VAVLE
173920
55MM WIDTH DIMENSION
WITH FLOW CONTROL
DIRECT
MECHANICAL SPRING
NON-REVERSIBLE
2/2 CLOSED MOBOSTABLE
3-16 BAR

FESTO • RKD1700862

HEL-1/4-D-MINI
ON/OFF VALVE
3-16 BAR
PISTON SLIDE
2/2 CLOSED MONOSTABLE
NON REVERSIBLE
1/4 CONNECTION
-10 TO +60 DEGREE C

FESTO • RKD1799555

HEL-1/4-D-MINI-NPT
SHUT OFF VALVE
HEL SERIES
40 MM WIDTH
PNEUMATIC ACTUATION
MECHANICAL SPRING RESET
DIRECT CONTROL
2/2
CLOSED
MONOSTABLE VALVE FUNCTION
3-16 BAR OPERATING PRESSURE
1500 L/MIN NOMINAL FLOW RATE
1/4 NPT PNEUMATIC CONNECTIONS
173917

FESTO • RKD1759096

HEL-1/8-D-MINI
SHUT OFF VALVE
HEL SERIES
PNEUMATIC ACTUATION
MECHANICAL SPRING RESET
2/2
CLOSED
MONOSTABLE VALVE FUNCTION
3-16 BAR OPERATING PRESSURE
1000 L/MIN NOMINAL FLOW RATE
G1/8 PNEUMATIC CONNECTIONS
165076

FESTO • RKD1820196

HEL-3/4-D-MAXI
SHUT OFF VALVE
HEL SERIES
PNEUMATIC ACTUATION
MECHANICAL SPRING RESET
2/2
CLOSED
MONOSTABLE VALVE FUNCTION
3-16 BAR OPERATING PRESSURE
6000 L/MIN NOMINAL FLOW RATE
G3/4 PNEUMATIC CONNECTIONS
165082

FESTO • RKD1742164

HEL-3/8-D-MIDI
ON/OFF PNEUMATIC VALVE
PISTON PUSHER
MECHANICAL SPRING
DIRECT CONTROL TYPE
NOT REVERSIBLE FLOW DIRECTION
3/16 BAR

FESTO • RKD1536351

HEL-3/8-D-MINI
SHUT OFF VALVE
HEL SERIES
PNEUMATIC ACTUATION
MECHANICAL SPRING RESET
2/2
CLOSED
MONOSTABLE VALVE FUNCTION
3-16 BAR OPERATING PRESSURE
1600 L/MIN NOMINAL FLOW RATE
G3/8 PNEUMATIC CONNECTIONS
165078

FESTO • RKD1759099

HEL-D-MAXI
SHUT OFF VALVE
HEL SERIES
PNEUMATIC ACTUATION
MECHANICAL SPRING RESET
2/2
CLOSED
MONOSTABLE
3-16 BAR OPERATING PRESSURE
NBR SEALS
170692

FESTO • RKD1723456

HEL-D-MIDI
SHUT OFF VALVE
HEL SERIES
PNEUMATIC ACTUATION
MECHANICAL SPRING RESET
DIRECT CONTROL TYPE
2/2
CLOSED
MONOSTABLE VALVE FUNCTION
3-16 BAR OPERATING PRESSURE
170691

FESTO • RKD1536354

HEL-D-MINI
PNEUAMATIC VALVE
ON/OFF
2/2 WAY DIRECTIONAL CONTROL
40 PSI
P1 MIN
3 BAR
P1 MAX 16 BAR
240 PSI
1.6 MPA
(170690)

FESTO • RKD1742167

HEM-M2-G1/2-10024
DISCONTINUED BY MANUFACTURER
SOFT START VALVE
W/ DUMP FUNCTION
24 VDC
10 BAR (145 PSI)
QUICK EXHAUST
SIZE 2
G THREAD
1/2 INCH CONNECTION
183045

FESTO • RKD1799558

HEM-M2-G1/4-10024
DISCONTINUED BY MANUFACTURER
(183039)
SOFT START VALVE
PRESSURE BUILD-UP
3/2
MONOSTABLE
2-10 BAR
G1/4 INCH
24 VDC
2.5 WATT
IP65

FESTO • RKD1799561

HEM-M2-G3/8-10024
DISCONTINUED BY MANUFACTURER
E-STOP VALVE
MAX. 10BAR
MAX. 145 PSI
24 V DC
2.5W
IP65

FESTO • RKD1536357

HEM-M2-G3/8-10110
DISCONTINUED BY MANUFACTURER
VALVE
SOFT START
WITH DUMP FUNCTION
110 VAC COIL
QUICK EXHAUST
MODULAR
SIZE 2
G3/8 INCH CONNECTION
0-10 BAR
NO BOWL

FESTO • RKD1742170

HEM-M2-N1/2-10024
DISCONTINUED BY MANUFACTURER
SOFT START VALVE
W/DUMP FUNCTION
24VDC
145PSI
QUICK EXHAUST
SIZE 2
G THREAD
1/2 INCH CONNECTION
183101
