Industrial Automation Products

B&R • 12735

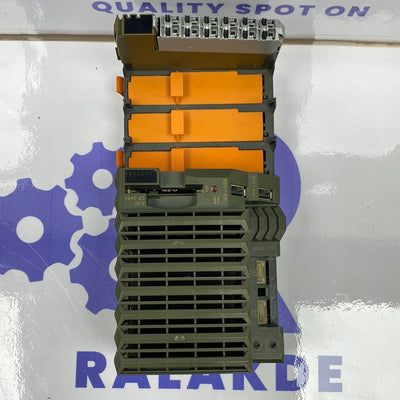

X20CP3485
DISCONTINUED BY MANUFACTURER
CPU MODULE
ETHERNET AND USB ON BOARD
POWERLINK CONNECTION
INTEL CELERON 266 PERFORMANCE
INPUT 24 VDC -15% / +20%
INPUT MAX. 2.2 A
OUTPUT 7W
24 VDC
64 MB SDRAM

B&R • RKD3566244

X20CP3485-1
DISCONTINUED BY MANUFACTURER
CPU MODULE
X20 SYSTEM
64 MB DRAM
1 MB SRAM
COMAPACTFLASH
(3) X20 INTERFACE MODULE SLOTS
(2) USB INTERFACES
RS232 INTERFACE
10/100 BASE-T ETHERNET INTERFACE
POWERLINK V1/V2 INTERFACE
24 VDC INPUT

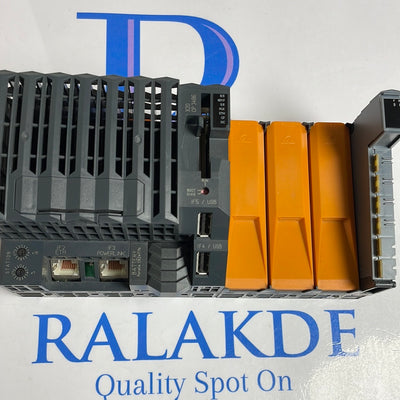

B&R • 12736

X20CP3486
DISCONTINUED BY MANUFACTURER
CPU
INTEL CELERON
650 PERFORMANCE
WITH ADDITIONAL I/O PROCESSOR
ETHERNET - POWERLINK AND USB ONBOARD
3 SLOTS
FOR MODULAR INTERFACE EXPANSION
COMPACTFLASH AS REMOVABLE APPLICATION MEMORY
13.5 W
24 V DC
-15% / +20%

B&R • RKD3371829

X20CP3584
DISCONTINUED BY MANUFACTURER
CPU
PLC MODULE
24 V DC INPUT VOLTAGE
1.5 AMP MAX CURRENT
X20 CPU
ATOM 0.6 GHZ
256 MB DDR2 RAM
1 MB SRAM
RS232/ETHERNET/POWERLINK/USB/X2X LINK INTERFACE
FANLESS COOLING

B&R • RKD3626205

X20CP3585
DISCONTINUED BY MANUFACTURER
CPU
INTEL ATOM
1.0 GHZ PROCESSOR
W/ ADDITIONAL I/O
ONBOARD ETHERNET
POWERLINK W/ POLL RESPONSE CHAINING &
USB
3 SLOT
COMPACTFLASH AS REMOVABLE APPLICATION MEMORY
256 MB
CONTROLLER REDUNDANCY POSSIBLE
FANLESS

B&R • RKD3626234

X20CP3586
DISCONTINUED BY MANUFACTURER
INDUSTRIAL PC
INTEL ATOM 1.6 GHZ PROCESSOR
3 MODULAR INTERFACE EXPANSION SLOTS
512MB DDR2 SDRAM
FANLESS

B&R • 16411/ S202

Intel Atom 1.6 GHz performance with integrated I/O processor
Ethernet, POWERLINK V2 with poll-response chaining and onboard USB
3 slots for modular interface expansion
2 GB LPDDR4 SDRAM
2 GB onboard flash drive
CompactFlash as removable application memory
Controller redundancy possible
Fanless

B&R • RKD3371862

X20CPS2100
POWER SUPPLY MODULE / FEED
LED STATUS INDICATOR
0.2 W BUS
0.6 W INTERNAL I/O
10 AMP
24 V
IP20
FOR USE WITH INTERNAL I/O SUPPLY

B&R • RKD546681

X20CPS8002
DISCONTINUED BY MANUFACTURER
POWER SUPPLY MODULE
FOR X20 STANDALONE DEVICES
24 VD C
POWER CONSUMPTION 1.34 W
IP20
HORIZONTAL MOUNTING ORIENTATION - 25 TO 60 C
VERTICAL MOUNTING ORIENTATION - 25 TO 50 C

B&R • RKD2256830

X20CS04110
DISCONTINUED BY MANUFACTURER
I/O MODULE
BUS 0.25 W
INTERNAL I/O 1.3 W
4 SAFE TYPE A DIGITAL OUTPUTS
24 V DC
0.5 A
HORIZONTAL MOUNTING ORIENTATION - 25 TO 60 C
VERTICAL MOUNTING ORIENTATION - 25 TO 50 C

B&R • RKD1505410

X20CS1011
COMMUNICATION MODULE
I/O INTERFACE
UP TO 16 SMARTWIRE SLAVES
24 VDC

B&R • RKD871062

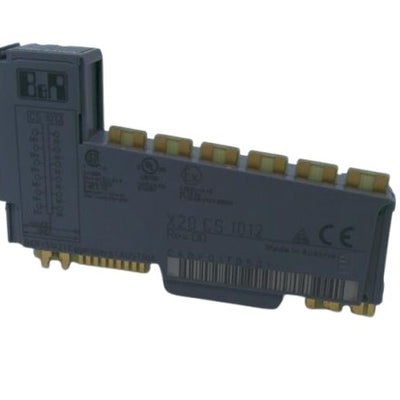

X20CS1012
DISCONTINUED BY MANUFACTURER
M-BUS MASTER
FOR CONTROLLING UP TO 64 M-BUS SLAVES
LED INDICATORS
0.2W

B&R • RKD3566274

X20CS1013
COMMUNICATION MODULE
DALI MASTER INTERFACE
16.5 V +/-5% OPEN CIRCUIT VOLTAGE
0.2-0.4 WATT
510 V INSULATION VOLTAGE
64 SLAVE CAPACITY
1200 BAUD RATE
-25 TO 60 DEGREE C
IP20

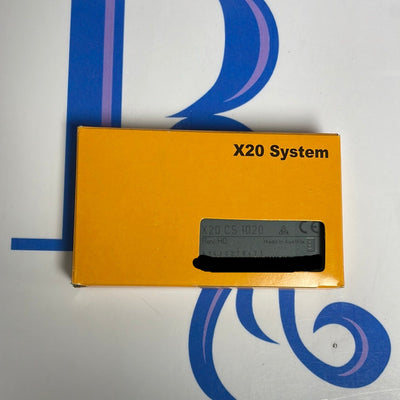

B&R • 12795 BX0772

X20CS1020

COMMUNICATION INTERFACE MODULE
X20
1 RS232 INTERFACE
SJA 1000
MAX. 1 MBIT/S
-25-+60 DEG C
IP20

B&R • RKD3566303

X20CS1030
COMMUNICATION INTERFACE MODULE
RS485 / RS422 INTERFACE FOR SERIAL
REMOTE CONNECTION OF COMLEX DEVICS TO THE X20 SYSTEM
INTEGRATED TERMINATING RESISTOR
0.01 W BUS
1.44 W INTERNAL I/O

B&R • RKD2256857

X20CS1070
INTEGRATED TERMINATING RESISTOR
X20 MODULE
12-PIN
MAX DISTANCE - 1000 M
1 CAN BUS INTERFACE
MAX - 1 MBIT/S

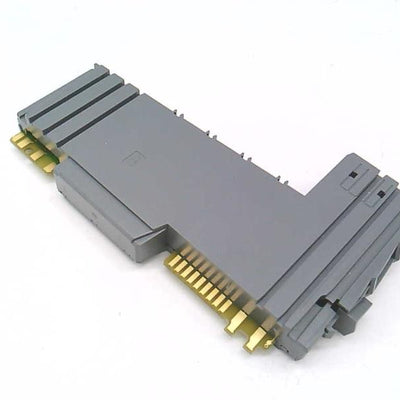

B&R • RKD546727

X20CS2770
COMMUNICATION INTERFACE MODULE
X20
2 CAN BUS INTERFACE
SJA 1000
MAX. 1 MBIT/S
-25 TO 60C
IP20

B&R • RKD831713

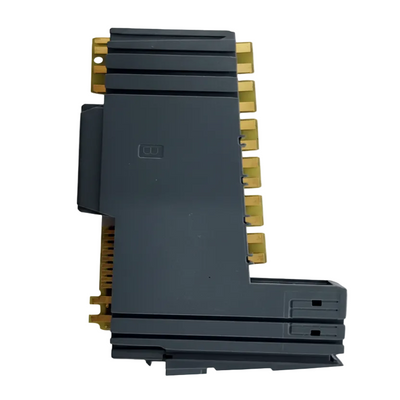

X20DC1176
INCREMENTAL ENCODER
5 VDC ENCODER INPUTS
16/32 BIT COUNTER SIZE
(X2) 24 VDC DIGITAL INPUT
WITH STATUS INDICATORS
IP20 ENCLOSURE PROTECTION

B&R • RKD3626288

X20DC1178
I/O MODULE
ABSOLUTE ENCODER
24 VDC
3 DIGITAL INPUTS
IP20

B&R • 12418

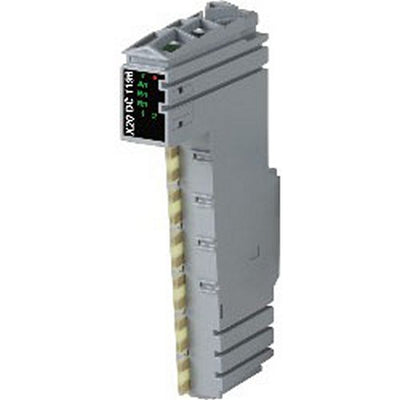

X20DC1196
I/O MODULE
X20 SERIES
1 INPUT
FOR ABR INCREMENTAL ENCODER
5 V ENCODER SIGNAL
24 VDC
600 KHZ

B&R • 12777 BX0709

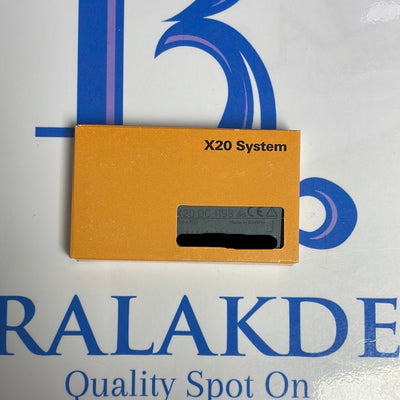

X20DC1198
ABSOLUTE ENCODER
SSI
5 V DC
24 V DC
2 ADDITIONAL INPUTS
32-BIT
GRAY/BINARY
7.19 K
IP20

B&R • 30918 bx0018

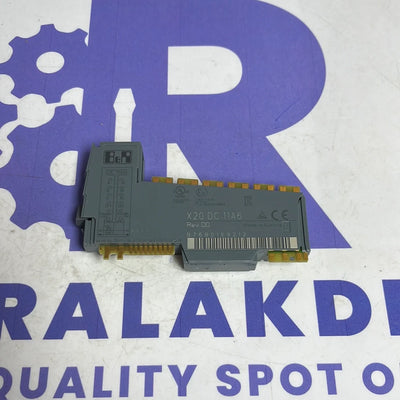

X20DC11A6
I/O MODULE
1 INPUT
1ABR INCREMENTAL ENCODER
5V
ENCODER INPUT MONITORYING
UP TO 250KHZ INPUT FREQ
2 ADDITIONAL INPUTS
5VDC / 24VDC
NETTIME TIMESTAMP: COUNTER CHANGE

B&R • GMCR2231

X20DC1396
I/O MODULE
1 INPUT
1 ABR INCREMENTAL ENCODER
5 V
ENCODER INPUT MONITORYING
UP TO 250 K HZ INPUT FREQ
2 ADDITIONAL INPUTS
5 V DC / 24 V DC
NETTIME TIMESTAMP: COUNTER CHANGE

B&R • RKD871089

X20DC1976
I/O MODULE
1 ABR INCREMENTAL ENCODER 5 V
ASYMMETRIC
ENCODER INPUT MONITORING
2 ADDITIONAL INPUTS E.G. FOR LATCH INPUT
5 VDC 24 VDC AND GND FOR ENCODER SUPPLY
NETTIME TIMESTAMP: COUNTER CHANGE
2 DI
24VDC
SINK
3-WIRE CONNECTIONS
IP20
