Industrial Automation Products

B&R • GMUK10345

X20CP1381RT
Intel x86 200 MHz compatible with integrated I/O processor
Ethernet, POWERLINK with poll-response chaining and onboard USB
1 slot for modular interface expansion
Onboard reACTION Technology
30 digital inputs/outputs and 2 analog inputs integrated in the device
1 GB onboard flash drive
128 MB DDR3 SDRAM
Fanless
No battery
Backed-up real-time clock

B&R • 14868 BX0627

X20CP1382
CPU
X20
WITH INTEGRATED I/O
INTEL X86
400 MHZ
2 USB PORTS
1 RS232 INTERFACE
1 CAN BUS INTERFACE
1 POWERLINK INTERFACE
1 ETHERNET PORT 10/100 BASE-T

B&R • GMUK10346

X20CP1382RT
Intel x86 400 MHz compatible with integrated I/O processor
Ethernet, POWERLINK with poll-response chaining and onboard USB
1 slot for modular interface expansion
Onboard reACTION Technology
30 digital inputs/outputs and 2 analog inputs integrated in the device
2 GB onboard flash drive
256 MB DDR3 SDRAM
Fanless
No battery
Backed-up real-time clock

B&R • 12804

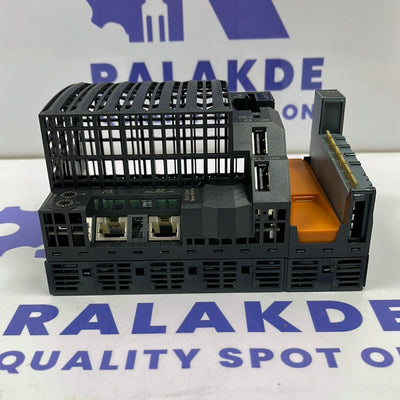

X20 CP 1483
CPU
100 MHZ
INTEL 32 MB
DRAM 128 KB
SRAM

B&R • 15966

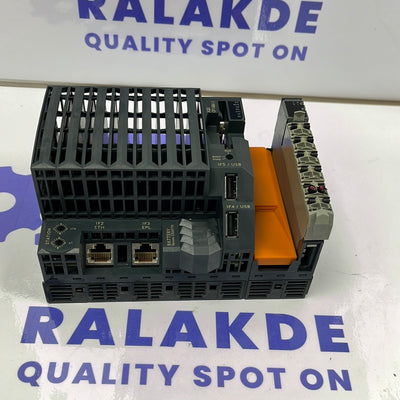

X20CP1484
CPU
CENTRAL PROCESSING UNIT
X20
32 MB DRAM
1 MB SRAM
24 VDC
2.2 AMP

B&R • SREU5848

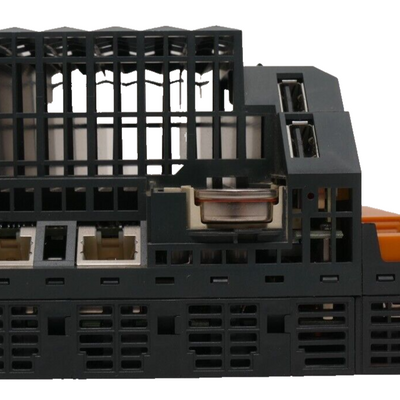

X20CP14841
CENTRAL PROCESSING UNIT
1 SLOT
24 VDC
10 AMP
64 MB SDRAM
1 MB SRAM
EXCHANGEABLE APPLICATION MEMORY: COMPACT FLASH
FAN-FREE
IP20

B&R • 12342

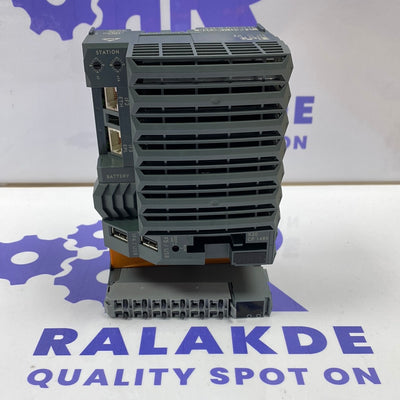

X20CP1485
CPU
24 V DC
10 AMP
7 W
64 MB SDRAM
1 MB SRAM
FAN-FREE

B&R • 15695

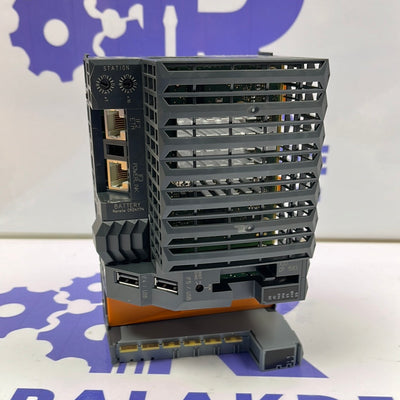

X20CP1583
CPU MODULE
INTEL ATOM 333 MHZ COMPATIBLE
WITH I/O PROCESSOR
24 VDC
1.5 AMP
1X ETHERNET
1X POWERLINK 1X RS232
128 MB DDR2 SDRAM
FANLESS
IP20

B&R • 14079

X20 CP1585

X20 CP 1585
CPU PROCESSOR MODULE
WITH GIGABIT ETHERNET
ATEX COMPLIANT
256MBYTES + 1MBYTES (SRAM) CAPACITY
WITH ETHERNET
RS-232
WITH 1 X INSERT SLOT
24VDC
DIN RAIL MOUNTING
RATED FOR -25...+60C AMBIENT

B&R •

B&R X20CP1585
Intel Atom 1.0 GHz processor with an additional I/O processor
Onboard Ethernet, USB
1 slot for modular interface expansion
CompactFlash memory
256 MB DDR2-SDRAM
Fanless

B&R • 16032/BX0748

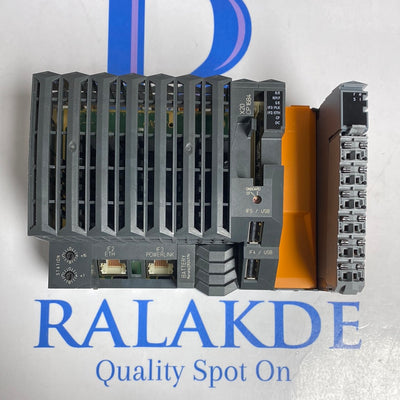

X20CP1684
CPU
X20 SYSTEM
INTEL ATOM WITH 400MHZ
1 SLOT FOR MODULAR INTERFACE EXPANSION
512MB LPDDR4 SDRAM
1GB
FANLESS
INPUT: 24VDC

B&R • GMUK10354

X20CP1685
Intel Atom 800 MHz performance with integrated I/O processor
Ethernet, POWERLINK V2 with poll-response chaining and onboard USB
1 slot for modular interface expansion
512 MB LPDDR4 SDRAM
1 GB onboard flash drive
CompactFlash as removable application memory
Fanless

B&R • 16028

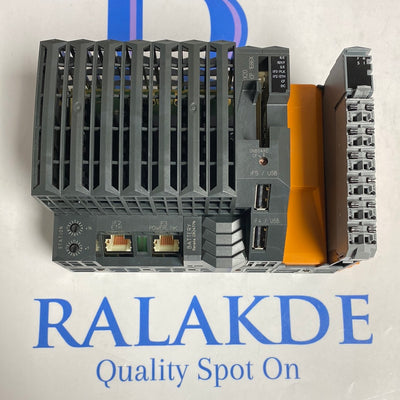

 X20 CP 1686X
Intel Atom 1.3 GHz performance with integrated I/O processor
Ethernet, POWERLINK V2 with poll-response chaining, and onboard USB
One slot for modular interface expansion
1 GB LPDDR4 SDRAM
2 GB onboard flash drive
CompactFlash as removable application memory
Fanless

B&R • SREU5483

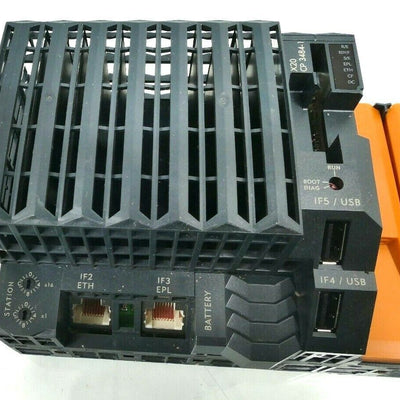

X20CP34841
CPU MODULE
ETHERNET AND USB ON BOARD
POWERLINK CONNECTION
INTEL CELERON 266 PERFORMANCE
INPUT 24 VDC -15% / +20%
INPUT MAX. 2.2 A
OUTPUT 7W
24 VDC
64 MB SDRAM

B&R • 14869/BX0747

X20CP3584
CPU
PLC MODULE
24 V DC INPUT VOLTAGE
1.5 AMP MAX CURRENT
X20 CPU
ATOM 0.6 GHZ
256 MB DDR2 RAM
1 MB SRAM
RS232/ETHERNET/POWERLINK/USB/X2X LINK INTERFACE
FANLESS COOLING

B&R • 14870 s5

X20CP3585
CPU
INTEL ATOM
1.0 GHZ PROCESSOR
W/ ADDITIONAL I/O PROCESSOR
ONBOARD ETHERNET
POWERLINK W/ POLL RESPONSE CHAINING & USB
3 SLOT EXPANSION
COMPACTFLASH AS REMOVABLE APPLICATION MEMORY
256 MB DDR2-SDRAM
CONTROLLER REDUNDANCY POSSIBLE
FANLESS

B&R • 14301

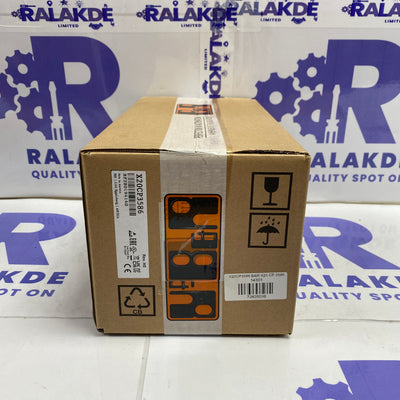

X20CP3586

X20cCP3586

X20c CP3586

X20c CP 3586

INDUSTRIAL PC
INTEL ATOM 1.6 GHZ PROCESSOR
3 MODULAR INTERFACE EXPANSION SLOTS
512MB DDR2 SDRAM
FANLESS

B&R • GMUK10361

X20CP3684
Intel Atom with 400 MHz (compatible) and integrated I/O processor
Ethernet, POWERLINK V2 with poll-response chaining and onboard USB
3 slots for modular interface expansion
512 MB LPDDR4 SDRAM
1 GB onboard flash drive
CompactFlash as removable application memory
Controller redundancy possible
Fanless

B&R • GMUK10362

X20CP3685
Intel Atom 800 MHz performance with integrated I/O processor
Ethernet, POWERLINK V2 with poll-response chaining and onboard USB
3 slots for modular interface expansion
512 MB LPDDR4 SDRAM
1 GB onboard flash drive
CompactFlash as removable application memory
Controller redundancy possible
Fanless

B&R • GMUK10363

X20CP3686X
Intel Atom 1.3 GHz performance with integrated I/O processor
Ethernet, POWERLINK V2 with poll-response chaining and onboard USB
3 slots for modular interface expansion
1 GB LPDDR4 SDRAM
2 GB onboard flash drive
CompactFlash as removable application memory
Controller redundancy possible
Fanless

B&R • GMUK10588

X20CPS2100
POWER SUPPLY MODULE / FEED
LED STATUS INDICATOR
0.2 W BUS
0.6 W INTERNAL I/O
10 AMP
24 V
IP20
FOR USE WITH INTERNAL I/O SUPPLY

B&R • GMUK10589

X20CPS3300
POWER SUPPLY MODULE
FOR INTERNAL I/O SUPPLY
0.6W
24VDC

B&R • GMUK10591

X20CPS8002
POWER SUPPLY MODULE
FOR X20 STANDALONE DEVICES
24 VD C
POWER CONSUMPTION 1.34 W
IP20
HORIZONTAL MOUNTING ORIENTATION - 25 TO 60 C
VERTICAL MOUNTING ORIENTATION - 25 TO 50 C

B&R • 21045 BX0382

X20cPS9400
24 VDC supply module for the bus controller
X2X Link power supply and I/O
1x RS232 service interface
