Industrial Automation Products

B&R • GMUK10429

X20cCP1382-RT
Description:
Intel x86 400 MHz compatible with integrated I/O processor
Ethernet, POWERLINK with poll-response chaining and onboard USB
1 slot for modular interface expansion
Onboard reACTION Technology
30 digital inputs/outputs and 2 analog inputs integrated in the device
2 GB onboard flash drive
256 MB DDR3 SDRAM
Fanless
No battery
Backed-up real-time clock

B&R • GMUK10430

X20cCP1684
This controller is based on Intel Atom processor technology

B&R • GMUK10431

X20cCP3687X
POWERLINK V2 and removable CompactFlash.
This controller is based on Intel Atom processor technology.

B&R • GMUK10584

X20cCS1020
RS232 interface for serial, remote connection of complex devices to the X20 system

B&R • GMUK10585

X20CCS1030
COMMUNICATION INTERFACE MODULE
RS485 / RS422 INTERFACE FOR SERIAL
REMOTE CONNECTION OF COMLEX DEVICS TO THE X20 SYSTEM
INTEGRATED TERMINATING RESISTOR
LED INDICATOR

B&R • GMUK10628

X20cDC1196
1 ABR incremental encoder 5 V
2 additional inputs e.g. for home enable switch
5 VDC, 24 VDC and GND for encoder supply

B&R • GMUK10629

X20CDC1198
I/O MODULE
BUS 0.01 W
INTERNAL I/O 1.5 W
NOMINAL VOLTAGE 24 V DC
INPUT RESISTANCE 7.19 KILOOHM
IP20
HORIZONTAL MOUNTING ORIENTATION - 25 TO 60 C
VERTICAL MOUNTING ORIENTATION - 25 TO 50 C

B&R • GMUK10630

X20cDC1396
1 ABR incremental encoder 24 V
1 additional input e.g. for home enable switch
24 VDC and GND for encoder supply

B&R • GMUK10631

X20cDC2190
Ultrasonic transducer module
Path measurement (resolution 10 µm)
Speed measurement (resolution 100 µm/s)
1, 2, 3 and 4 magnetic rod measurements possible
DPI/IP protocol supported

B&R • GMUK10632

X20CDC2395
COUNTER MODULE
24VDC ENCODER INPUTS
LED INDICATOR
1.4W

B&R • GMUK10594

X20cDI4371
4 digital inputs
Sink connection
3-wire connections
4 counter inputs with 1 kHz counter frequency
24 VDC and GND for sensor supply
Software input filter can be configured for the entire module

B&R • 14674

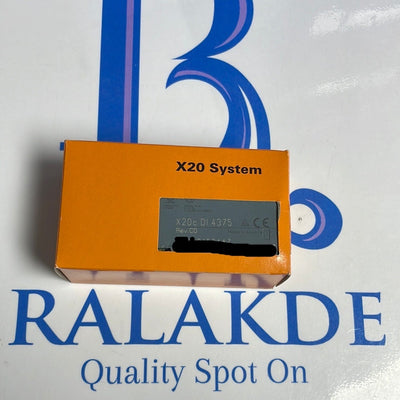

X20CDI4375
4 digital inputs
Sink connection
3-wire connections
24 VDC and GND for sensor supply
Open circuit and short circuit detection can be switched off individually for each channel
Software input filter can be configured for the entire module

B&R • 23211 BX0382

6 digital inputs
Sink connection
2-wire connections
24 VDC for sensor supply
Software input filter can be configured for the entire module
1-wire connection type with 6-pin terminal block

B&R • GMUK10595

X20CDI9371
INPUT MODULE DIGITAL
12 DIGITAL INPUT
24 V DC
SINK CONNECTION
1 WIRE CONNECTIONS

B&R • GMUK10596

X20cDI9372
12 digital inputs
Source connection
1-wire connections
Software input filter can be configured for entire module

B&R • GMUK10597

X20cDIF371
16 digital inputs
Sink connection
1-wire connections
Software input filter can be configured for entire module

B&R • GMUK10598

X20CDM9324
I/0 MODULE
8 DIGITAL INPUTS SINK CONNECTIONS
4 DIGITAL OUTPUTS SOURCE CONNECTIONS
1-WIRE CONNECTION
24 VDC
LED STATUS INDICATOR

B&R • GMUK10600

X20CDO2633
DIGITAL OUTPUT SLICE MODULE
X20 SERIES
48-240 VAC
2 AMP
47-63 HERTZ
3 WIRE CONNECTION
PLUG IN MOUNTING

B&R • GMUK10601

X20cDO4332
4 digital outputs with 2 A
Source connection
3-wire connections
24 VDC and GND for actuator supply
Integrated output protection
OSP mode

B&R • GMUK10602

X20cDO4649
4 digital outputs
Relay module for 240 VAC / 30 VDC
4 normally open contacts
Single-channel isolated outputs

B&R • GMUK10603

X20cDO6529
6 digital outputs
Relay module for 115 VAC
6 normally open contacts
Single-channel isolated outputs

B&R • GMUK10604

X20cDO6639
6 digital outputs
Relay module for 240 VAC / 30 VDC
Switching current 2 A
6 normally open contacts
Single-channel isolated outputs

B&R • GMUK10605

X20cDO8332
8 digital outputs with 2 A
Source connection
1-wire connections
Power feed integrated in the module
Integrated output protection

B&R • GMUK10606

X20cDO9321
12 digital outputs
Sink connection
1-wire connections
Integrated output protection
