Industrial Automation Products

B&R • GMUK10425

X20cBB52
Base for all X20 Compact-S CPUs
RS232 connection

B&R • GMUK10426

X20cBB57
Base for all X20 Compact-S CPUs
RS232 connection
CAN bus connection
Integrated terminating resistor for CAN bus

B&R • ASUK0005

X20CBB80
BUS BASE
CONFORMALLY COATED
1 SLOT
24 V DC
DIN RAIL MOUNTING
-25-+60 DEG C
AMBIENT

B&R • GMUK10565

X20CBB81
BUS BASE
ONE EXPANSION SLOT
0.50 W
24 VDC
10 A
IP20

B&R • GMUK10566

X20CBB82
BUS BASE
W/ 2 EXPANSION SLOTS
10 AMP
24 VDC
0.70 W
HORIZONTAL MOUNTING ORIENTATION (-25 TO 60°C)
VERTICAL MOUNTING ORIENTATION (-25 TO 50°C)
CONFORMAL COATING
IP20

B&R • GMUK10559

X20cBC004310
Fieldbus: CANopen
Auto-configuration of I/O modules
I/O configuration via the fieldbus
Constant response times even with large amounts of data (max. 32 Rx and 32 Tx PDOs)
Configurable I/O cycle (0.5 to 4 ms)
Configurable transfer rate or automatic transfer rate detection
Heartbeat consumer and producer
Emergency producer
2x SDO server, NMT slave
Simple bootup (autostart)
Terminal access via serial interface on the X20PS9400

B&R • GMUK10560

X20cBC0083
POWERLINK
I/O configuration and firmware update via the fieldbus
Integrated hub for economical wiring

B&R • GMUK10561

X20cBC0087
Fieldbus: Modbus/TCP, Modbus/UDP
I/O configuration via the fieldbus
DHCP-capable
Bootp-capable
Integrated double switch for efficient cabling
Configurable I/O cycle (0.5 to 4 ms)
Response time: <1 - 8 ms (depending on the load on the integrated switch)
Validity check for command sequences before execution

B&R • GMUK10562

X20cBC00E3
Fieldbus: PROFINET IO
I/O configuration via the fieldbus
Conformance Class B (RT)
Minimum cycle time 1 ms
Integrated switch for cabling multiple slaves
100 Mbit/s full duplex mode
Up to 1440 bytes of input data and up to 1440 bytes of output data are possible
Integrated website
PROFINET diagnostics and module diagnostics during runtime from within the master environment
Module and switch diagnostics during runtime using the website or SNMP

B&R • GMUK10563

X20cBC1083
POWERLINK
I/O configuration and firmware update via the fieldbus
Integrated hub for efficient cabling
Up to 2 slots for interface modules

B&R • GMUK10564

X20CBC8083
BUS CONTROLLER
POWERLINK V1/V2
CONTROLLED NODE WITH UP TO 2 SLOTS FOR HUB EXPANSION MODULES
BUS 2 W
HORIZONTAL MOUNTING ORIENTATION - 25 TO 60 C
VERTICAL MOUNTING ORIENTATION - 25 TO 50 C

B&R • GMUK10570

X20cBC8084
POWERLINK
I/O configuration and firmware update via the fieldbus
Integrated compact link selector function
2 active hub expansion modules can be connected to the bus controller
Redundant supply possible

B&R • GMUK10554

X20CBM01
BUS MODULE
0.13 W
24 VDC
10 AMP
IP20

B&R • GMUK10555

X20CBM11
BUS MODULE
IP20
0.13 W
10 AMP
24 V DC KEYED
CONTINUOUS INTERNAL I/O POWER SUPPLY
FOR 24 VDC I/O MODULES

B&R • GMUK10556

X20cBM12
Bus module for 240 VAC I/O modules
The internal I/O supply is interconnected
240 V coding for bus module, electronic module and terminal block

B&R • GMUK10557

X20cBM31
Bus module for double-width I/O modules
The internal I/O supply is interconnected

B&R • GMUK10558

X20CBM32
BUS MODULE
0.13 W
10 AMP
24 V DC
240 V AC KEYED
INTERNAL I/O SUPPLY CONTINUOUS
FOR DOUBLE-WIDTH 240 VAC I/O MODULES

B&R • GMUK10586

X20cBR9300
X2X Link bus receiver
Feed for X2X Link and internal I/O supply
Electrical isolation of feed and X2X Link supply
Redundancy of X2X Link supply possible by operating multiple supply modules simultaneously
Operation only on the slot to the far left

B&R • GMUK10587

X20cBT9100
X2X Link bus transmitter
For seamless expansion of the system
Up to 100 m segment length
Supply for internal I/O power supply
Operation only on the rightmost slot

B&R • SREU5813

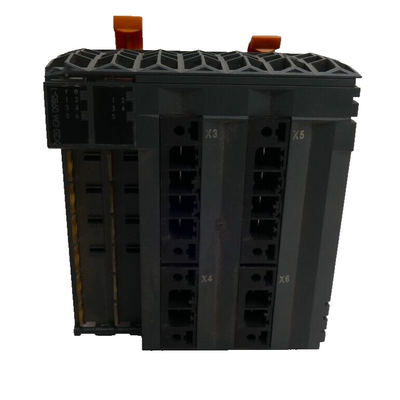

X20CCM09851
I/O MODULE
X20 ENERGY MEASUREMENT AND SYNCHRONIZATION MODULE
BUS 1.05 W
INTERNAL I/O 4 W
DIGITAL OUTPUTS
24 V DC
TOTAL NOMINAL CURRENT 0.5 A
RELAY OUTPUTS
NOMINAL VOLTAGE 30 VDC / 240 VAC
DC / 45 TO 63 HZ

B&R • GMUK10625

X20cCM4810
4-channel vibration measurement and analysis module
24-bit resolution at 51.562 kHz
IEPE supply
Internal calculation of an extensive range of condition parameters
Data buffer upload

B&R • GMUK10626

X20cCMR011
Measurement and evaluation of the ambient conditions in the control cabinet
Recording ambient conditions
Recording operating hours and power-on cycles
Saving user data directly on the module
Supports blackout mode
2 inputs for PT1000 temperature sensors
2 digital inputs 24 VDC
1 digital output 24 VDC

B&R • GMUK10424

X20cCP0410
ARM Cortex-A9 processor with 166 MHz (compatible) and integrated I/O processor
Onboard Ethernet
2x onboard USB
128 MB DDR3 SDRAM
256 MB onboard flash drive
Fanless
No battery
Extremely compact

B&R • GMUK10428

X20cCP1301
Intel x86 200 MHz compatible with integrated I/O processor
Onboard Ethernet and USB
1 slot for modular interface expansion
30 digital inputs/outputs and 2 analog inputs integrated in the device
1 GB onboard flash drive
128 MB DDR3 SDRAM
Fanless
No battery
Backed-up real-time clock
