Industrial Automation Products

B&R • GMUK10373

X20AC0SR10010
X20 end cover plate, right,

B&R • GMUK10348

X20ACEMTB1
2-pin terminal block for I/O power supply
6-pin terminal block for RS485 interface and CPU power supply
X20 end cover plate, right (order number X20AC0SR1)

B&R • 23728

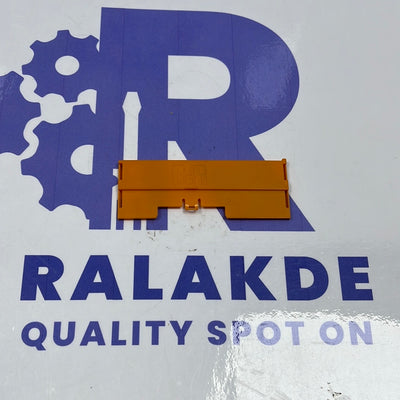

X20AC0SR1
LOCKING PLATE
RIGHT SIDE
X20

B&R • GMUK10520

X20AI174410
1 full-bridge strain gauge input
Bridge voltage 10 VDC
Data output rate configurable from 0.1 Hz to 7.5 kHz
Special operating modes (synchronous mode and multisampling)
Configurable filter level

B&R • GMUK10521

X20AI2222
MODULE
X20 ANALOG 2XI
+/-10V
12-BIT
300 S FOR ALL INPUTS
20 M
IP20

B&R • GMUK10522

X20AI2237
INPUT MODULE
2 ANALOG INPUTS
16BIT DIGITAL CONVERTER
HIGH SAMPLE RATE

B&R • 15813

X20AI2437
ANALOG MODULE
2 ANALOG INPUTS
1000 VAC
4 - 20 MA OR 0 - 25 MA
0.05 -1.15 W
16-BIT CONVERTER RESOLUTION
LED STATUS
-40 TO +85 DEGREES C
IP20

B&R • GMUK10524

X20AI2438
2 analog current measurement inputs
Integrated HART protocol
Supports HART variables
Electrically isolated analog channels
Electrically isolated sensor supplies
16-bit digital converter resolution
NetTime timestamp: Moment of measurement, HART image

B&R • GMUK10525

X20AI2636
2 analog inputs
Current or voltage signal configuration for the entire module
16-bit digital converter resolution
Minimum conversion time of 40 µs for all inputs
The conversion time for the entire module can be configured in 0.02 µs steps.
Maximum 14 samples (16-bit) for the entire module per X2X Link cycle
Oversampling: Up to 16 analog values per channel (internal)
Timestamp for the last conversion of an X2X Link cycle

B&R • 15016

X20AI4222
INPUT MODULE
4 ANALOG INPUTS
0-20 MA / 4-20MA
POWER CONSUMPTION BUS 0.01 W
INTERNAL I/O 1.1 W

B&R • 17336 BX0596

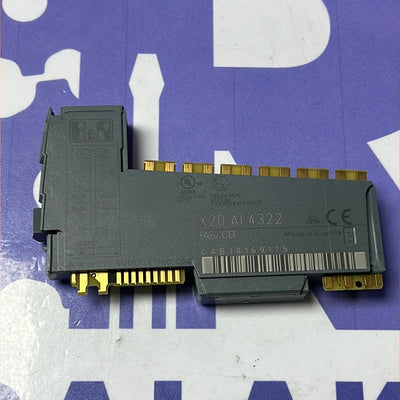

X20AI4322
INPUT MODULE
4 ANALOG INPUTS
0-20 MA / 4-20MA
POWER CONSUMPTION BUS 0.01 W
INTERNAL I/O 1.1 W

B&R • 12766

X20 AI4622
INPUT MODULE
4 INPUTS
+- 10 V OR 0-20 MA / 4-20 MA
13-BIT CONVERTER RESOLUTION
CONFIGURABLE INPUT FILTER

B&R • 12739 BX0707

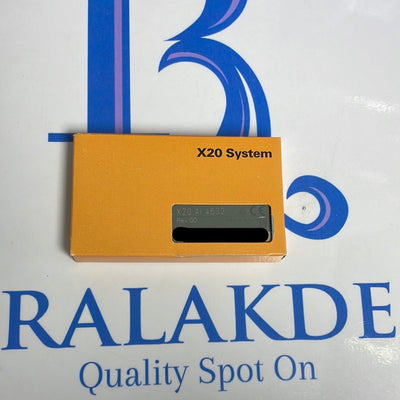

X20 AI 4632
I/O MODULE
X20 SERIES
4 ANALOG INPUTS
+ - 10 V OR 0 TO 20 MA
0.01 W BUS
1.5 W INTERNAL I/O
DIFFERENTIAL INPUT TYPE
16-BIT DIGITAL CONVERTER RESOLUTION

B&R • GMUK10526

X20AI4636
4 analog inputs
Current or voltage signal configuration for the entire module
16-bit digital converter resolution
Minimum conversion time of 40 µs for all inputs
The conversion time for the entire module can be configured in 0.02 µs steps.
Maximum 14 samples (16-bit) for the entire module per X2X Link cycle
Oversampling: Up to 16 analog values per channel (internal)
Timestamp for the last conversion of an X2X Link cycle

B&R • 15736 bx437 s19/17404

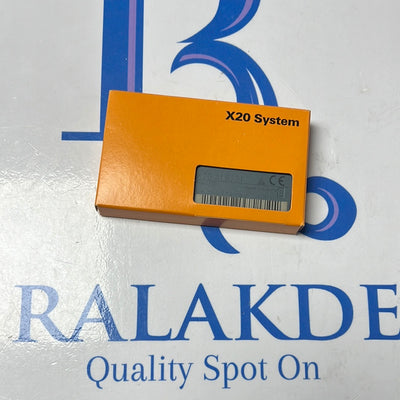

X20AI8221
INPUT MODULE
ANALOG
8INPUTS
10 VOLTS

B&R • 14883/BX0056

X20AI8321
ANALOG MODULE
8 INPUTS
0-20 MA
4-20MA
12 BIT DIGITAL CONVERTER

B&R • KKG80

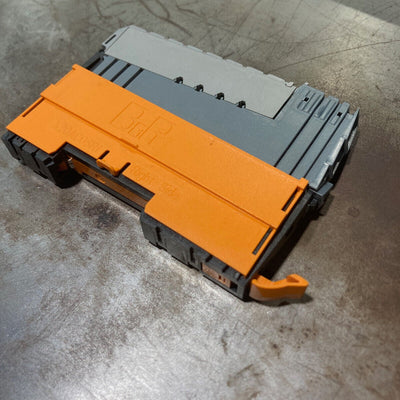

X20AIA744
DESCRIPTION:
2 full-bridge strain gauge inputs
5 kHz data output rate for both channels
Independently configurable strain gauge factor and filter level for each of the 2 channels
This module works with 4-wire strain gauge load cells. The concept applied by the module requires compensation in the measurement system. This compensation eliminates the absolute uncertainty in the measurement circuit, such as component tolerances, effective bridge voltage or zero offset. The measurement precision refers to the absolute (compensated) value, which will only change as a result of changes in the operating temperature.

B&R • GMUK10527

X20AIB744
ANALOG INPUT MODULE
4 FULL-BRIDGE STRAIN GAUGE INPUTS
5 KHZ DATA OUTPUT RATE FOR ALL 4 CHANNELS
INDEPENDENTLY CONFIGURABLE STRAIN GAUGE FACTOR
AND FILTER LEVEL FOR EACH OF THE 4 CHANNELS

B&R • 15827

X20AO2437
OUTPUT MODULE
2 ANALOG OUTPUTS
16 BIT DIGITAL CONVERTER RESOLUTION
4-20 MA
0-20 MA
0-24 MA
STATUS LED
1.6 WATT

B&R • GMUK10533

X20AO2438
Description:
2 analog current outputs
HART protocol integration
Support for HART variables
Electrically isolated analog channels
16-bit digital converter resolution
OSP mode
NetTime timestamp: HART image

B&R • 12751/BX0710

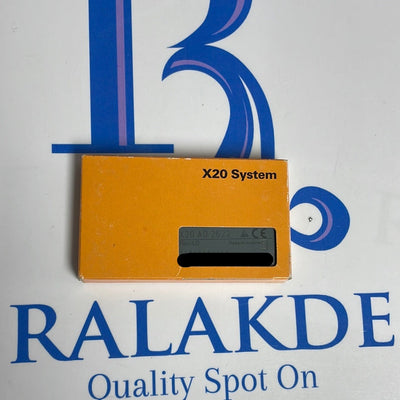

A0 2622X20AO2622
ANALOG OUTPUT MODULE
2 ANALOG OUTPUTS
CURRENT OR VOLTAGE SIGNAL
13-BIT DIGITAL CONVERTER RESOLUTION
+- 10 V OR 0-20 MA / 4-20 MA
0.01 W BUS
1.1 W INTERNAL I/O

A0 2622

A02622

B&R • GMUK10534

X20AO2632
OUTPUT MODULE
2 ANALOG OUTPUTS
16-BIT DIGITAL CONVERTER RESOLUTION
NETTIME
TIMESTAMP
SWITCH-OFF TIME

B&R • GMUK10535

X20AO4635
OUTPUT MODULE
4 ANALOG
16BIT

B&R • GMUK10528

X20AP3111
I/O UNIT
X20 SERIES
ANALOG ENERGY METER INPUT SLICE MODULE
NETTIME TIME-STAMPING FUNCTION
CABINET I/O
3 X ANALOG INPUTS: 277 VAC PHASE-TO-NEUTRAL/480 VAC PHASE-TO-PHASE (45/65 HZ)
4 X ANALOG INPUTS: 0-20 MA
