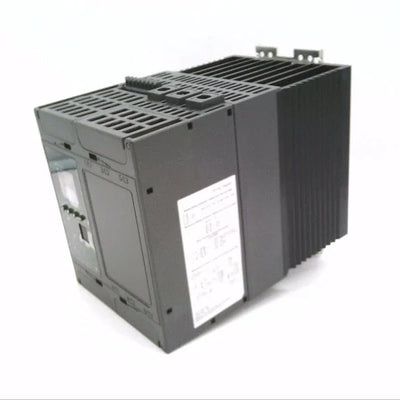

INVENSYS • RKD254839

EPACK-LITE-3PH/50A/500V/XXX/V2/XXXXX/XXXXX/XXX/XXXXXX
3 PHASE LITE COMPACT POWER CONTROLLER
50A NOMINAL CURRENT
500V AUXILIARY POWER SUPPLY
V²
CONTROL
STANDARD WARRANTY

INVENSYS • RKD132506

EPACK-LITE-3PH/80A/500V/XXX/V2/XXXXX/XXXXXX/HSM/LC/65A/400V/3D/XX/XX/BF/C16/SP/4A/FI/AK/XXX
POWER CONTROLLER
3 PHASE
80A
500V
RESERVED
V2 CONTROL (STANDARD)
HIGH SPEED FUSE WITH MICROSWITCH
LONG CODE CONFIGURATION
NOMINAL LOAD CURRENT 65A
NOMINAL LINE VOLTAGE 400V
CLOSED DELTA LONG CONFIGURATION

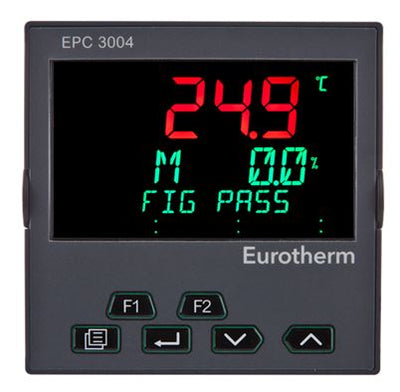

INVENSYS • RKD234490

EPC3004 CC/VH/T2/R2/XX/XX/XX/E4/ES/TK/XXX/ST/XXXXX/XXXXXX/XX/X/X/X/X/X/X/X/X/X/X/XX/XX/XX
TEMPERATURE PROCESS CONTROLLER
1/4 DIN
100-230VAC

INVENSYS • RKD66606

EPC3004/CC/VH/D1/R2/R2/XX/XX/E4/ES/XX/XXX/ST/XXXXX/XXXXXX/XX
1/4 DIN CONTROLLER
CONTROLLER ONLY
100-230VAC (48 TO 62HZ)
DC OUTPUT
RELAY
RELAY OUTPUT
FUTURE
MODBUS SLAVE
ETHERNET
ETHERNET/IP SERVER AND MODBUS TCP SLAVE
TWO GAIN SCHEDULING SETS

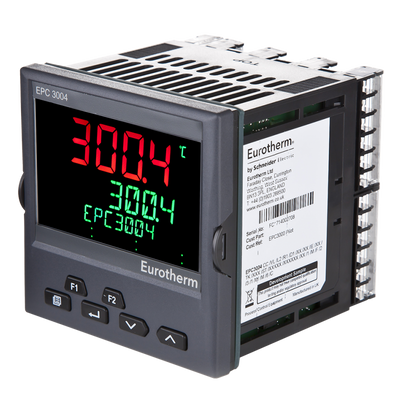

INVENSYS • RKD616935

EPC3004/CC/VH/R1/R1/R1/XX/XX/IE/XX/XX/XX/ST/XXXXX/XXXXXX/XX/X/X/X/X/X/X/X/X/X/X/XX/XX/XX/
CONTROLLER ONLYSUPPLY
VOLTAGE (VH) 100 - 230VAC +/-15% (48 TO 62HZ)
RS485 COMMUNICATION PROTOCOL
(XX) MODBUS SLAVE ETHERNET
2ND INPUT AND OPTION I/O (IE) ETHERNET (MODBUS TCP SLAVE) SECOND PV INPUT
4 X DIGITAL I/O

INVENSYS • RKD281937

EPC3004/CC/VH/R2/R2/L2/EI/XX/XX/XX/XX/ST/XX/X/X/X
TEMPERATURE PROCESS CONTROLLER
MODEL EPC3004
1/4 DIN CONTROLLER
CONTROLLER ONLY
100 - 230VAC +/-15% (48 TO 62HZ)
I/O 1 RELAY OUTPUT (SUPPLIED WITH EXTERNAL SNUBBER)
I/O 2 RELAY OUTPUT (SUPPLIED WITH EXTERNAL SNUBBER)
I/O 4 LOGIC
EI-BISYNCH COMMS

INVENSYS • RKD254842

EPC3004/CC/VH/T2/T2/R2/XX/XX/E4/XXXX/XX/XX/TK/XX/ST/XX/XX
TEMPERATURE/PROCESS
CONTROLLER
EPC3000 SERIES
SINGLE LOOP PID
1/4 DIN
1 X 24 SEGMENT ADVANCED
PROGRAMMER
24 V AC/DC SUPPLY

INVENSYS • RKD255956

EPC3004/CC/VH/T2/T2/XX/XX/XX/XX/XX/XX/XX/ST /XXXXX/XXXXXX/XX/X/X/X/X/X/X/X/X/X/X/XX/XX/XX/
TEMPERATURE CONTROLLER
SINGLE LOOP PROCESS
1/4 DIN

INVENSYS • RKD255959

EPC3004/CP/VH/D1/R1/R1/XX/XX/XX/XX/XX/WD/XX/X/X/X
TEMPERATURE PROCESS CONTROLLER
MODEL EPC3004
1/4 DIN CONTROLLER
1 X 8 SEGMENT BASIC PROGRAMMER
100 - 230VAC +/-15% (48 TO 62HZ)
I/O 1 DC OUTPUT
I/O 2 RELAY OUTPUT (WITHOUT SNUBBER)
I/O 4 RELAY OUTPUT (WITHOUT SNUBBER)
MODBUS SLAVE (DEFAULT)
NO TO

INVENSYS • RKD66609

EPC3004/P1/VH/D1/R1/R1/XX/XX/IE/XX/TK/XX/ST/XXXXX/XXXXXX
1/4 DIN CONTROLLER
1 X 24 SEGMENT ADVANCED PROGRAMMER
100 - 230VAC +/-15% (48 TO 62HZ)
DC OUTPUT
RELAY OUTPUT

INVENSYS • RKD255962

EPC3008 FM/VH/D1/D1/D1/XX/XX/IE/XX/XX/XXX/ST/XXXXX/XXXXXX/XX/X/X/X/X/X/X/X/X/X/X/XX/XX/XX
DISCONTINUED BY MANUFACTURER
TEMPERATURE PROCESS CONTROLLER
100-230VAC
2 AMP

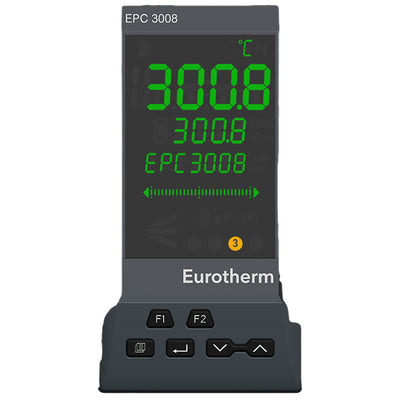

INVENSYS • RKD281940

EPC3008/CC/VH/D1/D1/R1/XX/XX/E4/BS/TK/XXX/ST/XXXXX/XXXXXX
PROGRAMMABLE CONTROLLER
SUPPLY VOLTAGE 85-264VAC
ANALOG OUTPUT
FUTURE EXPANSION
STANDARD (MODBUS) SERIAL COMMS PROTOCOL

INVENSYS • RKD246728

EPC3008/CC/VH/D1/R2/R2/EI/XX/ES/XX/XXX/ST/XX/X/X/X
TEMPERATURE PROCESS CONTROLLER
MODEL EPC3008
1/8 DIN CONTROLLER
CONTROLLER ONLY
100 - 230VAC +/-15% (48 TO 62HZ)
I/O 1 DC OUTPUT
EIBISYNC ENABLED
ETHERNET 2ND INPUT AND OPTION I/O NONE
ETHERNET/IP SERVER
NO TOOL KIT
STANDARD BEZEL
TWO GAIN SCHE

INVENSYS • RKD166001

EPC3008/CC/VH/D1/R2/R2/XX/XX/IE/XX/TK/XXX/ST/XXXXX/XXXXXX/XX/X/X/X/X/X/X/X/X/X/X/XX/XX/XX
CONTROLLER
EPC3008
1/8TH
DIN

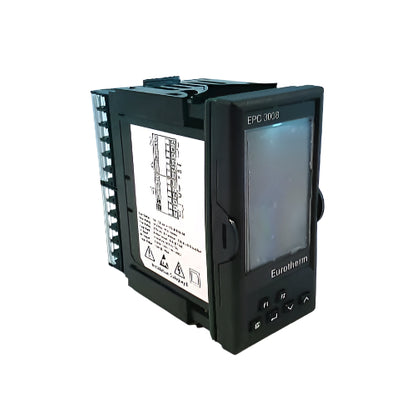

INVENSYS • RKD132512

EPC3008/CC/VH/D1/XX/XX/XX/XX/XX/XX/XX/XXX/ST/XXXXX/XXXXXX/XX
CONTROLLER
PROGRAMMABLE
EPC2008
ADDED DEVICENET COMMUNICATIONS CAPABILITY

INVENSYS • RKD166004

EPC3008/CC/VH/L2/T2/XX/XX/XX/XX/XX/XX/XXX/ST/XXXXX/XXXXXX/XX/X/X/X/X/X/X/X/X/X/X/XX
TEMPERATURE CONTROLLER
PROGRAMMABLE SINGLE LOOP PROCESS
AUTO-TUNE AND MODBUS RTU / RS-485COMMUNICATIONS
100-230VAC
LOGIC
RELAY SUPPLIED WITH EXTERNAL SNUBBER
STANDARD BEZEL
SUGGESTED REPLACEMENT FOR 2208E/CC/VH/LH/TC/RF/XX/2XX/XXX

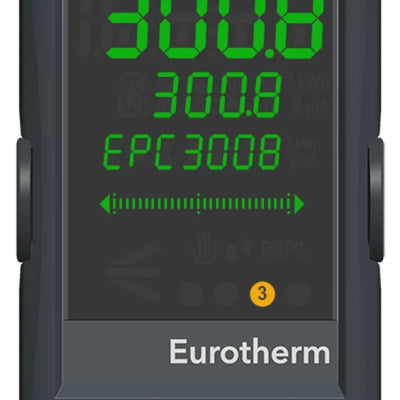

INVENSYS • RKD132515

EPC3008/CC/VH/L2/XX/R1/XX/XX/E4/XX/XX/XXX/ST/XXXXX/XXXXXX
CONTROLLER
MODEL (EPC3008)
1/8 DIN CONTROLLER
TYPE (CC) CONTROLLER ONLY
SUPPLY VOLTAGE (VH) 100 - 230VAC +/-15% (48 TO 62HZ)
I/O1 (L2) LOGIC
I/O4 (R1) RELAY OUTPUT (WITHOUT SNUBBER)
OUTPUT 3 (XX) FORM C
RS485 COMMUNICATION PROTOCOL (XX)

INVENSYS • RKD254845

EPC3008/CC/VH/R2/R2/R2/XX/EI/XX/XX/TK/XXX/ST/XXXXX/XXXXXX/XX/X/X/X/X/X/X/X/X/X/X/XX/XX/XX
EPC3008
1/8 DIN CONTROLLER
CONTROLLER ONLY
100 - 230VAC +/-15% (48 TO 62HZ)
RS485 COMMUNICATION PROTOCOL

INVENSYS • RKD234493

EPC3008/CC/VH/XX/XX/XX/XX/XX/TM/XX/XXX/ST/XX/X/X/X
TEMPERATURE PROCESS CONTROLLER
MODEL EPC3008
1/8 DIN CONTROLLER
CONTROLLER ONLY
100 - 230VAC +/-15% (48 TO 62HZ)
I/O 1 NOT FITTED
MODBUS SLAVE (DEFAULT)
ETHERNET 2ND INPUT AND OPTION I/O NONE
MODBUS TCP SLAVE OR NONE
NO TOOL KIT
STANDARD BEZEL

INVENSYS • RKD246734

EPC3016//CC/VH/L2/XX/XX/XX/XX/XX/XX/XX/XXX/ST/XXXXX/XXXXXX/XX/X/X/X/X/X/X/X/X/X
CONTROLLER
SINGLE LOOP PROCESS AND TEMPERATURE CONTROLLER
1/16 DIN
100 - 230VAC
48 TO 62 HZ
(EPC3016//CC/VH/L2/XX/XX/XX/XX/XX/XX/XX/XXX/ST/XXXXX/XXXXXX/XX/X/X/X/X/X/X/X/X/X)

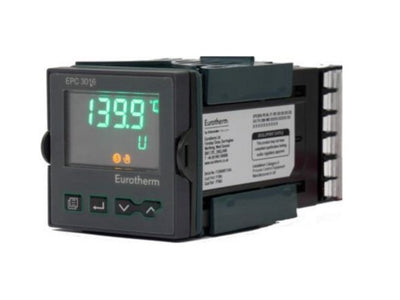

INVENSYS • RKD281946

EPC3016/CC/VH/L2/R2/XX/XX/XX/CE/XX/XX/TK/XX/ST/XX/
PROGRAMMABLE CONTROLLER
CONTROLLER ONLY
100-230 VAC
LOGIC I/O
STANDARD TOOL KIT BLOCK
STANDARD BEZEL
SUGGESTED REPLACEMENT FOR 2416/CC/VH/LH/FH/R2/AM/ENG

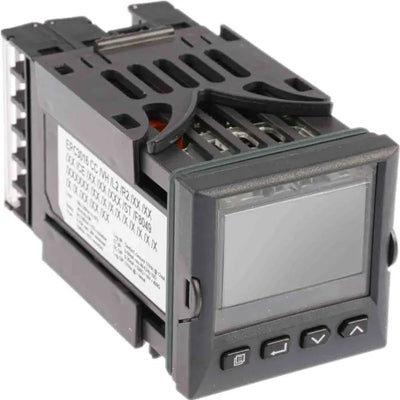

INVENSYS • RKD255965

EPC3016/CC/VH/L2/XX/XX/XX/XX/CE/XX/XX/XX/XX/ST/XX/
EPC3016 PROGRAMMABLE CONTROLLER
LOGIC OUTPUT
ETHERNET COMMS W/ LOGIC INPUT

INVENSYS • RKD281948

EPC3016/CC/VH/L2/XX/XX/XX/XX/XX/XX/XX/XXX/ST/XXXXX/XXXXXX/XX
TEMPERATURE PROCESS CONTROLLER
MODEL EPC3016
1/16 DIN CONTROLLER
1 X 8 SEGMENT BASIC PROGRAMMER
100 - 230VAC +/-15% (48 TO 62HZ)
I/0 1 LOGIC
CT INPUT
DIGITAL IN
(DIRECT REPLACEMENT OF 2216E/CC/VH/LH/XX/RC/2XX/ENG)

INVENSYS • RKD254848

EPC3016/CC/VH/R2/R2/XX/XX/XX/XX/XX/XX/XXX/ST/XXXXX/XXXXXX/XX/X/X/X/X/X/X/X/X/X/X/X/
TEMPERATURE PROCESS CONTROLLER
1/16 DIN CONTROLLER
SUPPLY VOLTAGE (VH) 100 - 230VAC +/-15% (48 TO 62HZ)
I/O 1 RELAY (SUPPLIED WITH EXTERNAL SNUBBER)
I/O 2 RELAY (WITH SNUBBER)
OUTPUT 3 FORM C
BEZEL STANDARD
