Industrial Automation Products

MULTICOMP • RKD418542

MC002089
TERMINAL BLOCK
BARRIER
5POS
22-12AWG
PITCH SPACING:11MM
NO. OF ROWS:1 ROW
NO. OF POSITIONS:5POSITIONS
WIRE SIZE AWG MIN:22AWG
WIRE SIZE AWG MAX:12AWG
RATED CURRENT:25A
RATED VOLTAGE:300V
PRODUCT RANGE:- ROHS COMPLIANT: YES

MULTICOMP • RKD594949

MC002103
AXIAL FAN
60MM
12VDC
18.6CFM
27.7DBA
SUPPLY VOLTAGE:12V
CURRENT TYPE:DC
FAN FRAME SIZE:60MM
EXTERNAL DEPTH:15MM
NOISE RATING:27.7DBA
FLOW RATE - IMPERIAL:18.6CU.FT/MIN
FLOW RATE - METRIC:31.6M3/H
BEARING TYPE:HYDRO WAVE
ROHS COMPLIANT: YES

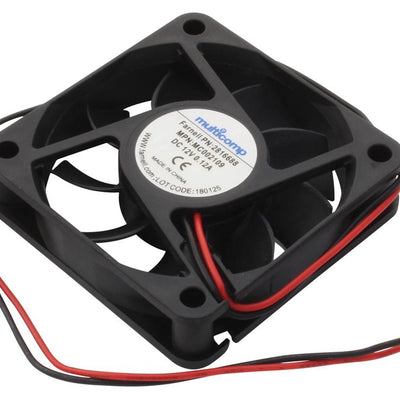

MULTICOMP • RKD412095

MC002109
AXIAL FAN
60MM
12VDC
18.84CFM
VOLTAGE TYPE:DC
SUPPLY VOLTAGE:12VDC
FAN FRAME SIZE:60MM
EXTERNAL DEPTH:-
BEARING TYPE:HYDRO WAVE BEARING
AIR FLOW - CFM:18.84CFM
NOISE RATING:33.05DBA
POWER RATING:1.44W
RATED SPEED:3800RPM ROHS COMPLIANT: YES

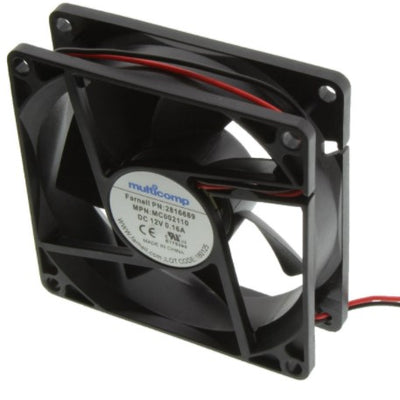

MULTICOMP • RKD479884

MC002110
AXIAL FAN
80MM
12VDC
38.6CFM
VOLTAGE TYPE:DC
SUPPLY VOLTAGE:12VDC
FAN FRAME SIZE:80MM
EXTERNAL DEPTH:25MM
BEARING TYPE:SLEEVE BEARING
AIR FLOW - CFM:38.6CFM
NOISE RATING:33.03DBA
POWER RATING:1.92W
RATED SPEED:3000RPM ROHS COMPLIANT: YES

MULTICOMP • RKD418544

MC002228
PUR RESIN
PACKET
BLACK
500 G
POTTING COMPOUND PUR (POLYURETHANE)
COMPOUND COLOUR BLACK
ROHS COMPLIANT: YES
NON HAZARDOUS

MULTICOMP • RKD418546

MC002293
PROTECTION COVER
24MM X 44.6MM X 57.5MM
RELAY DUST COVER TYPE:PROTECTIVE
FOR USE WITH:SINGLE PHASE SOLID STATE RELAYS
PRODUCT RANGE:- ROHS COMPLIANT: YES

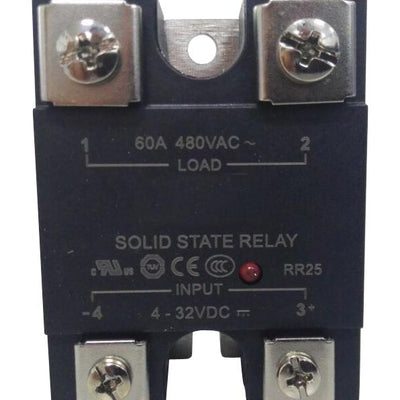

MULTICOMP • RKD412097

MC002313
SOLID STATE RELAY
25A
4-32VDC
PANEL
CONTACT CONFIGURATION:-
LOAD CURRENT:25A
OPERATING VOLTAGE MAX:280VAC
RELAY MOUNTING:PANEL
RELAY TERMINALS:SCREW
SWITCHING MODE:ZERO CROSSING
OPERATING VOLTAGE MIN:48VAC
PRODUCT RANGE:- ROHS COMPLIANT: YES

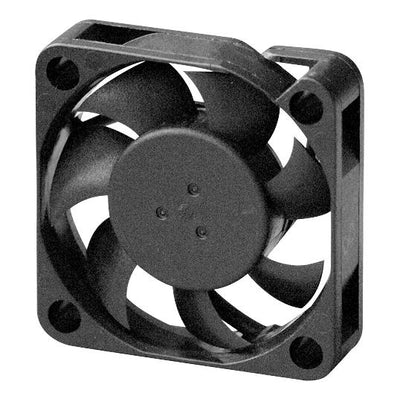

MULTICOMP • RKD412100

MC002686
AXIAL FAN
40MM
12VDC
7CFM
20.6DBA
VOLTAGE TYPE:DC
SUPPLY VOLTAGE:12VDC
FAN FRAME SIZE:40MM
EXTERNAL DEPTH:10MM
BEARING TYPE:VAPO BEARING
AIR FLOW - CFM:7CFM
NOISE RATING:20.6DBA
POWER RATING:580MW
RATED SPEED:5800RPM ROHS COMPLIANT: YES

MULTICOMP • RKD708455

MC002694
AXIAL FAN
TYPE: DC
24V
39MA
0.94W
2 WIRE
40MM X 40MM X 20MM
7000 RPM
8.9 CFM
25.5 DBA
VAPO BEARING
ROHS COMPLIANT

MULTICOMP • RKD708457

MC002706
AXIAL FAN
60MM
24VDC
23.5CFM
27DBA
VOLTAGE TYPE:DC
SUPPLY VOLTAGE:24VDC
FAN FRAME SIZE:60MM
EXTERNAL DEPTH:25MM
BEARING TYPE:VAPO BEARING
AIR FLOW - CFM:23.5CFM
NOISE RATING:27DBA
POWER RATING:1.4W
RATED SPEED:4500RPM ROHS COMPLIANT: YES

MULTICOMP • RKD521665

MC002707
AXIAL FAN
60MM
24VDC
19.3CFM
22DBA
SUPPLY VOLTAGE:24V
CURRENT TYPE:DC
FAN FRAME SIZE:60MM
EXTERNAL DEPTH:25MM
NOISE RATING:22DBA
FLOW RATE - IMPERIAL:19.3CU.FT/MIN
FLOW RATE - METRIC:0.55Mª
/MIN
BEARING TYPE:VAPO ROHS COMPLIANT: YES

MULTICOMP • RKD708459

MC004151
COMPUTER CABLE
DB25 PLUG-RECEPTACLE
25 POSITION PLUG TO 25 POSITION RECEPTACLE
7.6 METER (25 FOOT) CABLE LENGTH
GREY JACKET COLOR
ROHS COMPLIANT

MULTICOMP • RKD418548

MC00625W0402110R
RESISTOR
0402 1% 10R
RESISTANCE:10OHM
RESISTANCE TOLERANCE: 1%
POWER RATING:62.5MW
VOLTAGE RATING:50V
TEMPERATURE COEFFICIENT: 200PPM/ C
RESIST

MULTICOMP • RKD594951

MC00625W040212K43
RESISTOR
0402 1 2K4
RESISTANCE:2.4KOHM
RESISTANCE TOLERANCE: 1
POWER RATING:62.5MW
VOLTAGE RATING:50V
SERIES:MC
TEMPERATURE COEFFICIENT: 100PPM

MULTICOMP • RKD418550

MC0063W06031100K
RES
THICK FILM
100K
1%
0.063W
0603
RESISTOR CASE STYLE:0603 [1608 METRIC]
RESISTANCE:100KOHM
PRODUCT RANGE:MC 1% SERIES
VOLTAGE RATING:50V
RESISTOR ELEMENT TYPE:THICK FILM
POWER RATING:63MW
RESISTANCE TOLERANCE:ª
1% ROHS COMPLIANT: YES

MULTICOMP • RKD697571

MC0063W0603110K2
RESISTORS
0603 10K2RESISTOR
0603 10K2
THICK FILM
RESISTANCE:10.2KR
CASE STYLE:0603
SERIES:MC
POWER RATING:0.063W
TOLERANCE
+:1%
TOLERANCE
-

MULTICOMP • RKD594953

MC0063W0603147K
RESISTOR
47K OHM
62.5MW
1%
THICK FILM
SMD
0603 (1608 METRIC)
ROHS3 COMPLIANT

MULTICOMP • RKD594957

MC008352
RES
75K
0.1%
0.063W
0603
THIN FILM
RESISTOR CASE STYLE:0603 [1608 METRIC]
RESISTANCE:75KOHM
PRODUCT RANGE:-
VOLTAGE RATING:50V
RESISTOR ELEMENT TYPE:THIN FILM
POWER RATING:63MW
RESISTANCE TOLERANCE:ª
0.1% ROHS COMPLIANT: YES

MULTICOMP • RKD697573

MC008466
RES
10R
0.1%
0.1W
0805
THIN FILM
RESISTOR CASE STYLE:0805 [2012 METRIC]
RESISTANCE:10OHM
PRODUCT RANGE:-
VOLTAGE RATING:100V
RESISTOR ELEMENT TYPE:THIN FILM
POWER RATING:100MW
RESISTANCE TOLERANCE:ª
0.1% ROHS COMPLIANT: YES

MULTICOMP • RKD418552

MC0125W120611K05
RESISTOR
1K05
0.125W
1%
1206
PRODUCT RANGE:MC SERIES
RESISTANCE:1.05KOHM
POWER RATING:125MW
RESISTANCE TOLERANCE:1%
VOLTAGE RATING:200V
RESI

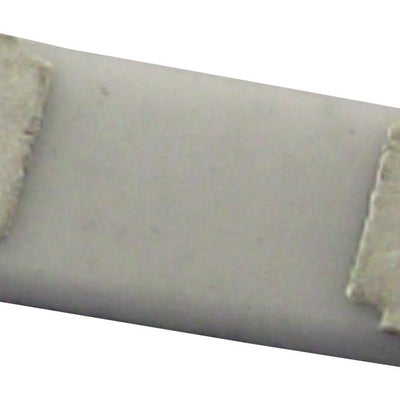

MULTICOMP • RKD534039

MC0125W120611R50
RES
THICK FILM
1R5
1%
0.125W
1206
RESISTOR CASE STYLE:1206 [3216 METRIC]
RESISTANCE:1.5OHM
PRODUCT RANGE:MC 1% SERIES
VOLTAGE RATING:200V
RESISTOR ELEMENT TYPE:THICK FILM
POWER RATING:125MW
RESISTANCE TOLERANCE:¦
1% ROHS COMPLIANT: YES

MULTICOMP • RKD708461

MC0125W1206147R
RESISTORS
47 OHM
0.125MW
1%
THICK FILM
SMD
1206 (3216 METRIC)
ROHS COMPLIANT

MULTICOMP • RKD697575

MC0125W1206149K9
RES
THICK FILM
49K9
1%
0.125W
1206
REEL
RESISTOR CASE STYLE:1206 [3216 METRIC]
RESISTANCE:49.9KOHM
PRODUCT RANGE:MC 1% SERIES
VOLTAGE RATING:200V
RESISTOR ELEMENT TYPE:THICK FILM
POWER RATING:125MW
REEL QUANTITY:5000 ROHS COMPLIANT: YES

MULTICOMP • RKD521667

MC0125W1206175R
RES
THICK FILM
75R
1%
0.125W
1206
RESISTANCE:75OHM
RESISTANCE TOLERANCE:±
1%
POWER RATING:125MW
RESISTOR CASE / PACKAGE:1206 [3216 METRIC]
RESISTOR TECHNOLOGY:THICK FILM
RESISTOR TYPE:GENERAL PURPOSE
PRODUCT RANGE:- ROHS COMPLIANT: YES
