Industrial Automation Products

FESTO • RKD258550

DFM-32-125-B-PPV-A-KF
GUIDED DRIVE
DFM SERIES
125 MM STROKE
32 MM PISTON DIAMETER
RECIRCULATING BALL BEARING GUIDE
1.5-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
G1/8 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING MATERIAL
NBR SEALS
609358

FESTO • RKD258553

DFM-32-125-P-A-GF
PNEUMATIC CYLINDER
DUAL ROD
32 MM BORE
125 MM STROKE

FESTO • RKD247814

DFM-32-125-P-A-KF
PNEUMATIC GUIDED CYLINDER
DFM SERIES
32 MM BORE
125 MM STROKE
10 BAR
DOUBLE ACTING
G1/8 CONNECTION
RECIRCULATING BEARING GUIDE
-5 TO +60 DEGREE C
170936

FESTO • RKD70239

DFM-32-160-B-YSRW-A-KF
GUIDED ACTUATOR
32 MM PISTON DIAMETER
160 MM STROKE
B SERIES
SHOCK ABSORBER / SELF-ADJUSTING / PROGRESSIVE
RECIRCULATING BALL BEARING GUIDE
532318

FESTO • RKD217060

DFM-32-160-P-A-GF
GUIDED DRIVE CYLINDER
32 MM PISTON DIAMETER
160 MM STROKE

FESTO • PSGUS5245

DFM-32-160-P-A-KF
GUIDED DRIVE
DOUBLE-ACTING
32 MM PISTON DIAMETER
160 MM STROKE
50 MM CENTER OF LOAD TO YOKE PLATE DISTANCE
0.15 MPA-1 MPA
1.5 BAR-10 BAR
PNEUMATIC CONNECTION G1/8
0.8 M/S MAX SPEED

FESTO • RKD247817

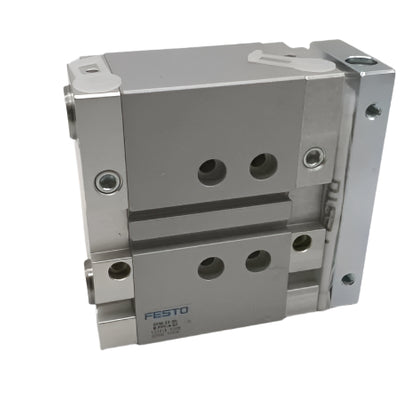

DFM-32-20-B-PPV-A-GF
DFM-B
GUIDED DRIVE

FESTO • RKD70244

DFM-32-20-B-PPV-A-KF
GUIDE DRIVE
STROKE: 20 MM
PISTON DIAMETER: 32 MM
OPERATING PRESSURE: 1.5...10 BAR
DOUBLE-ACTING
PNEUMATIC CONNECTION: G1/8
RECIRCULATING BALL BEARING GUIDE
8161432

FESTO • RKD249142

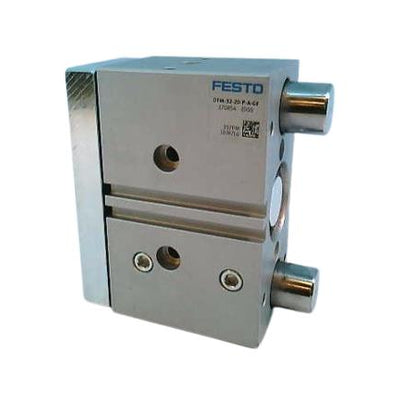

DFM-32-20-P-A-GF
PNEUMATIC CYLINDER
170854
DFM SERIES
GUIDED DRIVE
DOUBLE-ACTING
DUAL ROD
32 MM BORE SIZE
20 MM STROKE
G 1/8 PORT SIZE

FESTO • RKD249145

DFM-32-20-P-A-KF
CYLINDER
DFM SERIES
BALL GUIDE
DOUBLE ACTING
32 MM BORE
20 MM STROKE
G1/8 PNEUMATIC CONNECTOR

FESTO • RKD265702

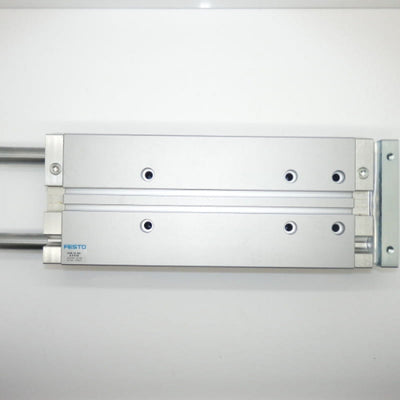

DFM-32-200-B-P-A-KF
GUIDED ACTUATOR
32 MM PISTON DIAMETER
200 MM STROKE
B SERIES
FLEXIBLE CUSHIONING RINGS / PADS ON BOTH SIDES
RECIRCULATING BALL BEARING GUIDE
POSITION SENSING FOR PROXIMITY SENSOR
532318

FESTO • RKD249136

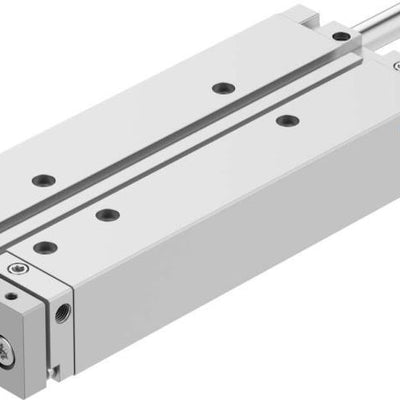

DFM-32-200-B-PPV-A-GF
GUIDED DRIVE
DFM SERIES
200 MM STROKE
32 MM PISTON DIAMETER
SLIDING GUIDE
1.5-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
G1/8 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING MATERIAL
NBR SEALS
604969

FESTO • RKD258559

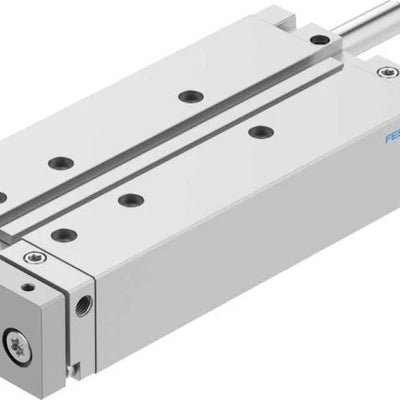

DFM-32-200-B-PPV-A-KF
GUIDED DRIVE
DFM SERIES
200 MM STROKE
32 MM PISTON DIAMETER
RECIRCULATING BALL BEARING GUIDE
1.5-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
G1/8 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING MATERIAL
NBR SEALS
8161438

FESTO • RKD249139

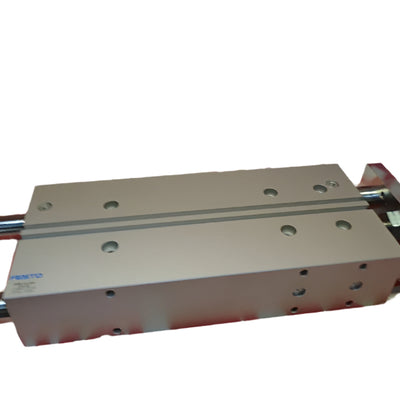

DFM-32-200-P-A-GF
GUIDED DRIVE
DOUBLE-ACTING PNEUMATIC CYLINDER
200 MM STROKE
32 MM PISTON DIAMETER

FESTO • RKD265705

DFM-32-200-P-A-KF
GUIDED ACTUATOR
PNEUMATIC
200 MM STROKE
32 MM PISTON DIAMETER

FESTO • RKD70247

DFM-32-25-B-P-A-GF
DISCONTINUED BY MANUFACTURER
GUIDED DRIVE CYLINDER
10 BAR MAX

FESTO • RKD70250

DFM-32-25-B-PPV-A-GF
GUIDED DRIVE
DFM SERIES
25 MM STROKE
32 MM PISTON DIAMETER
SLIDING GUIDE
1.5-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
G1/8 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING MATERIAL
NBR SEALS
562063

FESTO • RKD280911

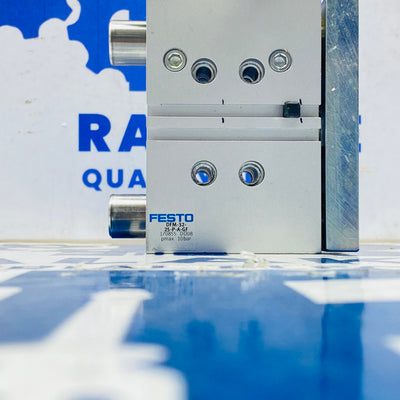

DFM-32-25-P-A-GF
GUIDED ACTUATOR
DFM SERIES
25 MM STROKE
32 MM BORE
ELASTIC CUSHIONING RINGS/PADS AT BOTH ENDS
SLIDING GUIDE
1.5-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
G1/8 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING
(170855)

FESTO • RKD217063

DFM-32-25-P-A-KF
GUIDED DRIVE
DOUBLE-ACTING
PNEUMATIC CYLINDER

FESTO • RKD280914

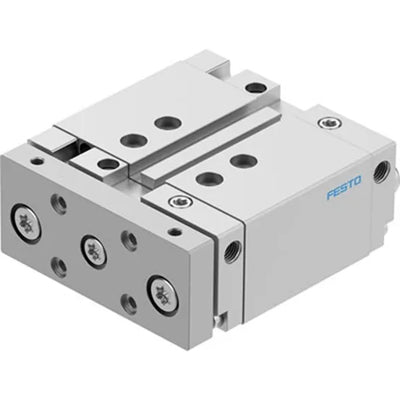

DFM-32-30-B-PPV-A-KF
GUIDED DRIVE
DFM SERIES
30 MM STROKE
32 MM PISTON DIAMETER
RECIRCULATING BALL BEARING GUIDE
1.5-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
G1/8 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING MATERIAL
NBR SEALS
8161435

FESTO • RKD70253

DFM-32-30-P-A-GF
GUIDED ACTUATOR
DUAL ROD
DOUBLE ACTING
32 MM BORE
30 MM STROKE
M5 PORT SIZE
2-10 BAR OPERATING PRESSURE
0.8 M/S MAXIMUM SPEED
ELASTIC CUSHIONING RINGS/PADS AT BOTH ENDS
(170856)

FESTO • RKD135941

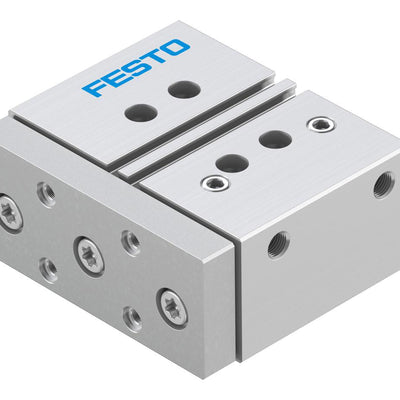

DFM-32-30-P-A-KF
GUIDED DRIVE
DOUBLE ACTING
32 MM PISTON DIAMETER
30 MM STROKE
50 MM DISTANCE FROM CENTRE OF GRAVITY OF LOAD TO YOKE PLATE XS
1.5-10 BAR OPERATING PRESSURE
0.8 M/S MAX SPEED
G1/8 CONNECTION
WROUGHT ALUMINIUM ALLOY
-5 TO +60 DEGREES C
(170931)

FESTO • RKD258562

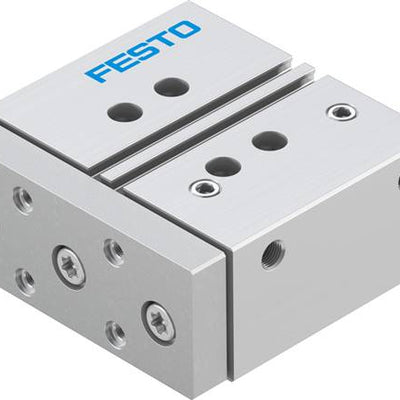

DFM-32-40-B-P-A-KF
PNEUMATIC BALL BEARING GUIDED DRIVE
32MM BORE
40MM STROKE
10 BAR

FESTO • RKD135944

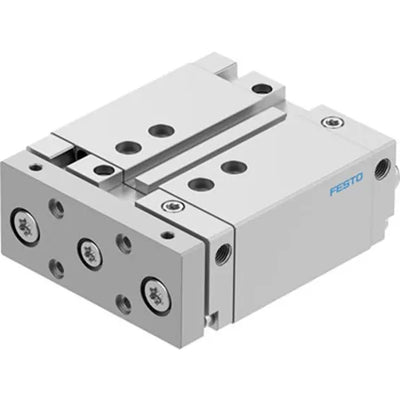

DFM-32-40-B-PPV-A-GF
GUIDED DRIVES DFM-B
WITH RECIRCULATING BALL BEARING GUIDE KF
DIAMETER 20MM
DIAMETER 32 MM
10 BAR MAX
